Installing Oddments Tray Lid Extension

Screw in fastening screws in the oddments tray → Tightening torque: 2.5 Nm (2 ftlb.)+/-0.5 Nm (+/-0.5 ftlb.) .

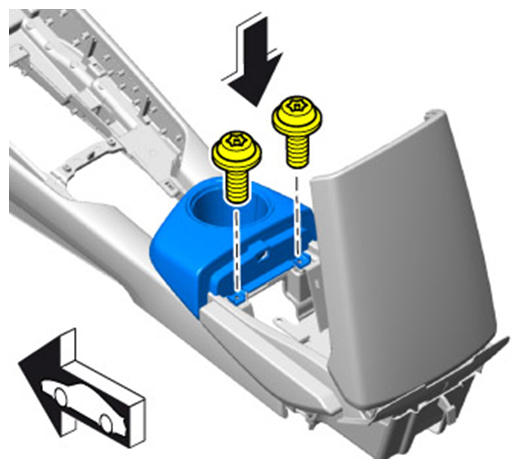

Fig 1: Securing Lid Extension In Oddments Tray
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in fastening screw securing lid extension in the oddments tray → Tightening torque: 2.5 Nm (2 ftlb.)+/-0.5 Nm (+/-0.5 ftlb.) .

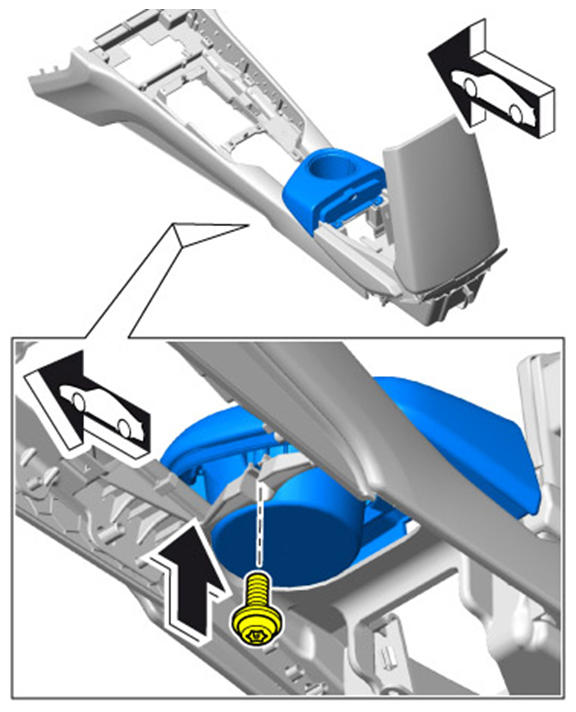

Fig 2: Securing Oddments Tray Lid Extension
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
