Removing Rear Cupholder (Business)

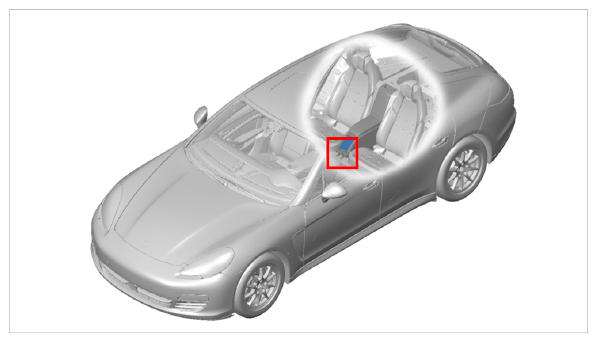

Fig 1: Identifying Rear Cupholder Installation Position (Business)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

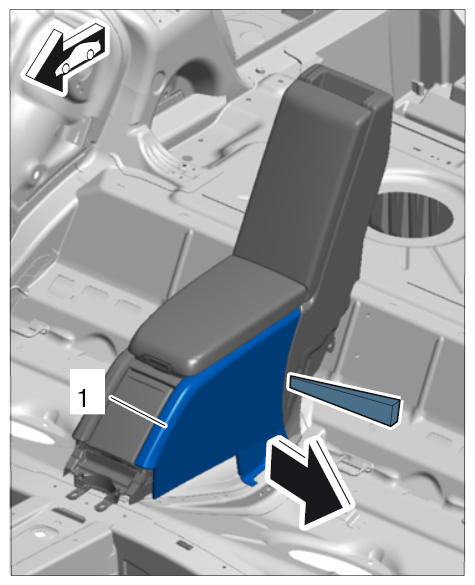

Unclip side panel -1- at both sides using combination assembly wedge Nr.199 and remove it -arrow- .

Fig 2: Removing Side Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

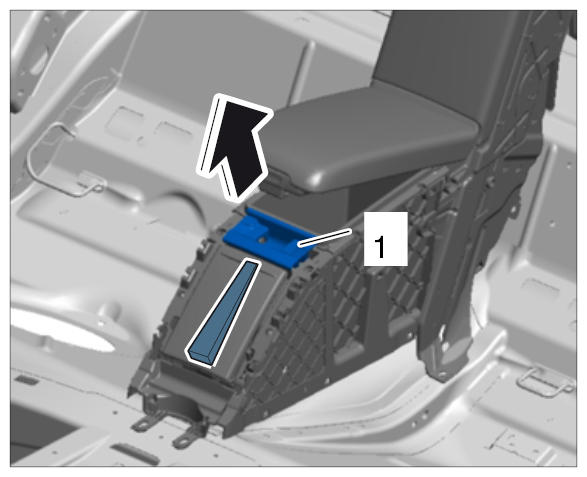

Unclip rear center console trim -1- using combination assembly wedge Nr.199 and remove it -arrow- .

Fig 3: Removing Rear Centre Console Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

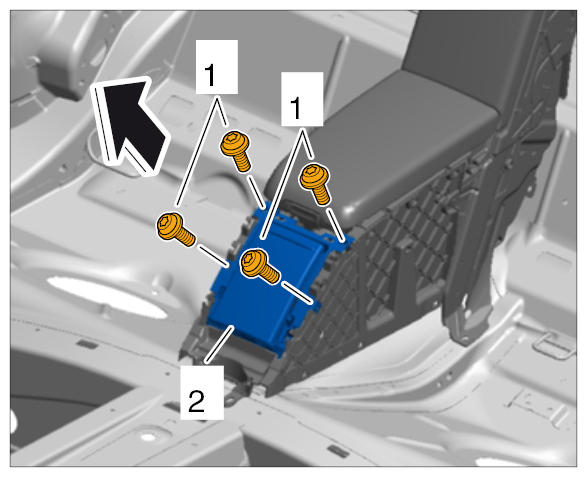

Unscrew fastening screws -1- and remove rear cupholder (Business) -2- (-arrow- ).

Fig 4: Removing Rear Cupholder Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
