Removing Cupholder

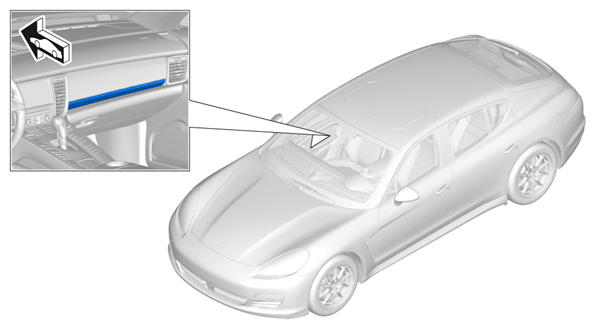

Fig 1: Identifying Dashboard Cupholder Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

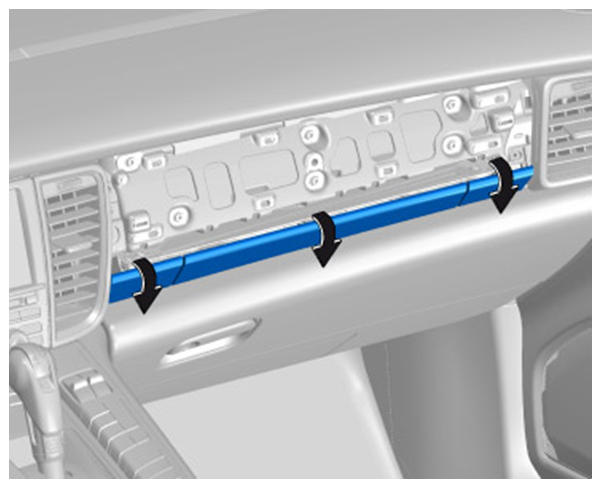

Open cover on cupholder by pressing it in direction of travel.

Fig 2: Opening Cover On Cupholder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

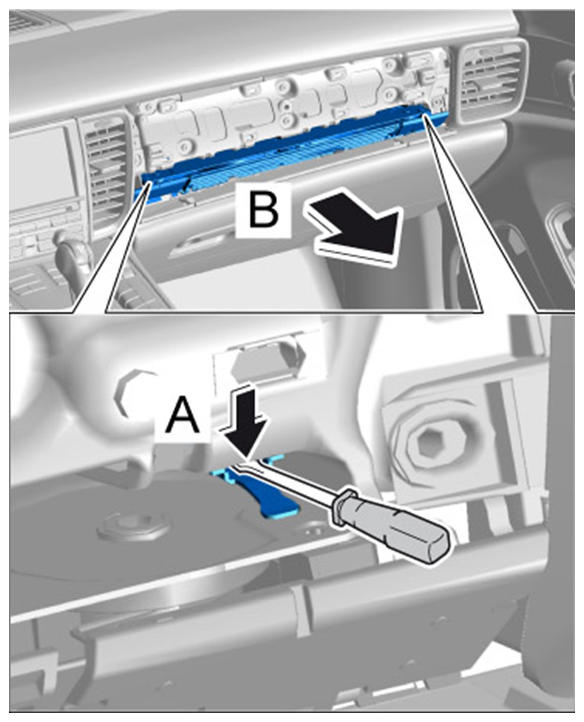

Release fastening clamp - arrow A- .
Pull cupholder out of the guide towards the passenger compartment -arrow B- .

Fig 3: Removing Cupholder

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
