Disassembling Rear Centre Console

  1. Remove wire harness for rear center console. → REMOVING WIRING HARNESS FOR REAR CENTRE CONSOLE
  2. Unscrew fastening screws -1-  on the bracket.

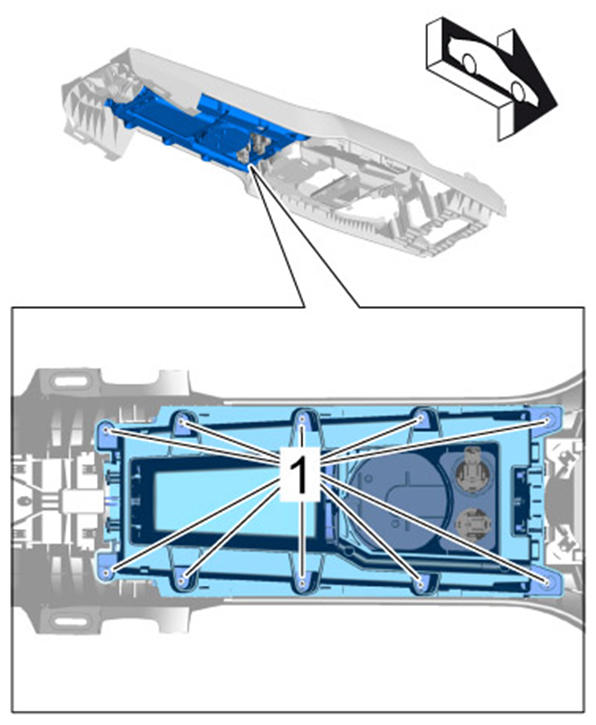

    Fig 1: Identifying Rear Centre Console Bracket
    G09811686Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove bracket.
  4. Unclip rear cover.

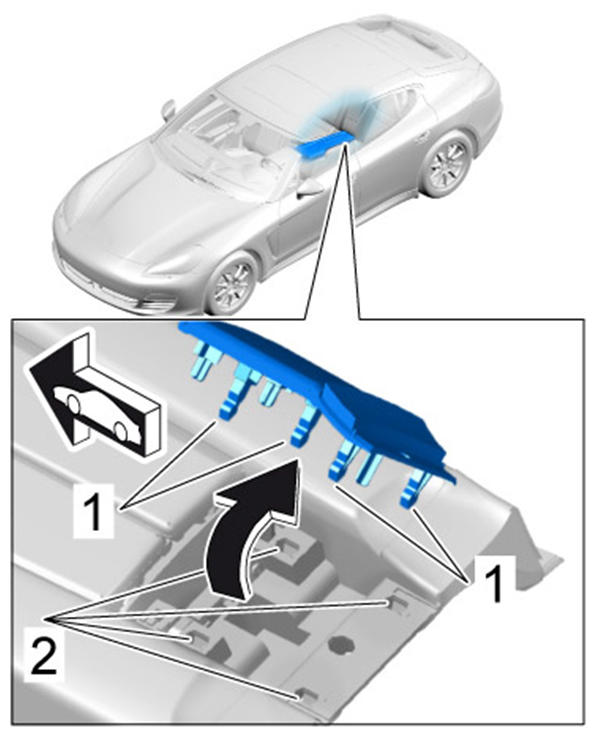

    Fig 2: Removing Rear Centre Console Cover Clip
    G09811687Courtesy of PORSCHE CARS NORTH AMERICA, INC.
