Removing Rear Centre Console (Business)

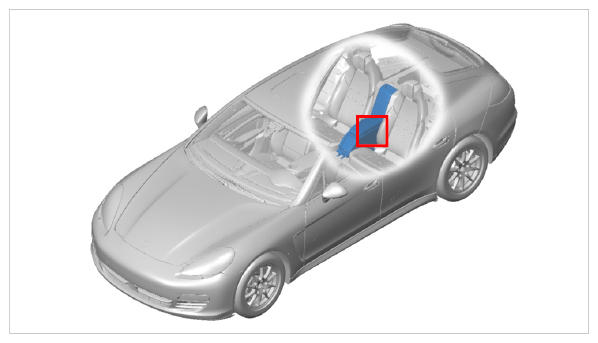

Fig 1: Identifying Rear Centre Console Position (Business)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

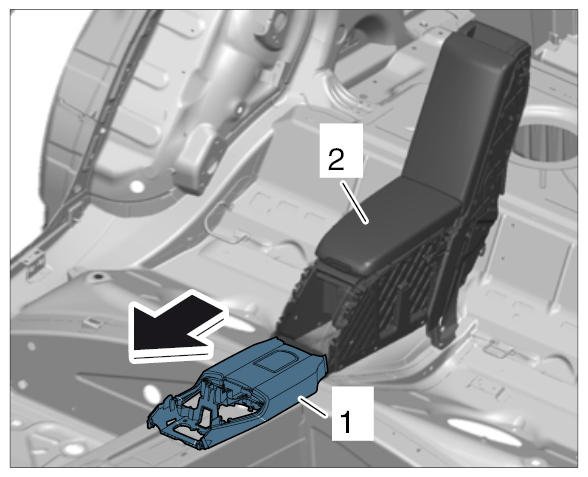

1. Remove rear center console (short) -1-  from rear center console (Business) -2-  in direction of travel -arrow-  .
   Fig 2: Removing Rear Centre Console (Short)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

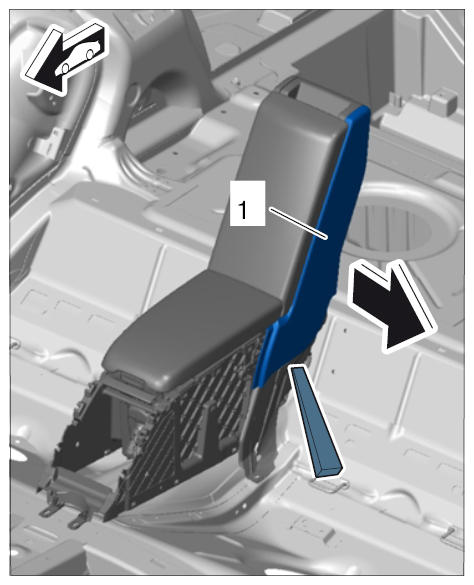

2. Unclip side trim panel -1-  at both sides using combination assembly wedge Nr.199  (-arrow-  ).
   Fig 3: Removing Side Trim Panel

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

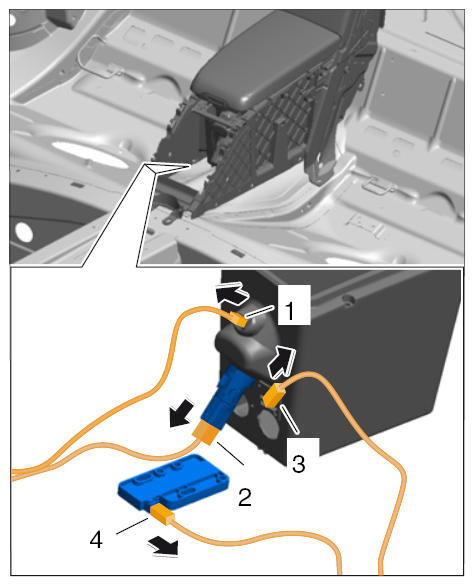

3. Unclip LED -1-  (-arrow-  ).
4. Release connectors -2, 3 and 4-  and pull them off -arrows-  .
Fig 4: Disconnecting Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

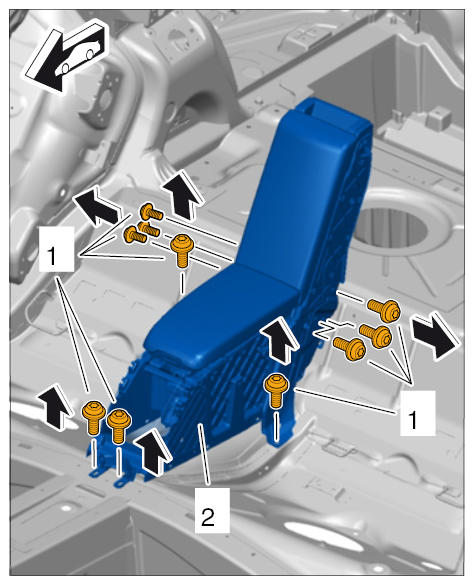

5. Unscrew fastening screws at the front, bottom and sides -1-  (-arrows-  ) and remove rear center console (Business) -2-  .
   Fig 5: Removing Fastening Screws At Front, Bottom And Sides

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

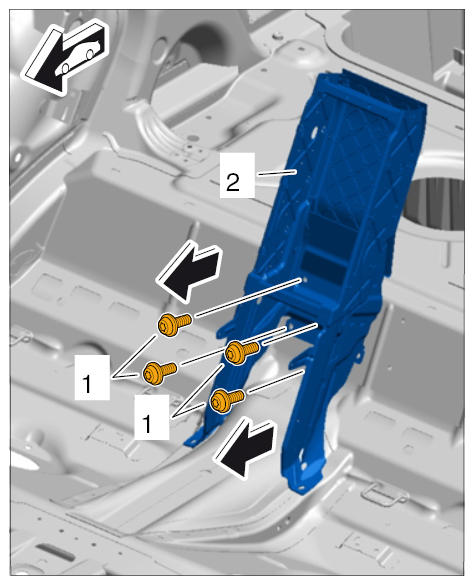

6. Unscrew fastening screws at the rear -1-  (-arrows-  ) and remove bracket for rear center console (Business) -2-  .
   Fig 6: Removing Rear Centre Console (Business)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
