Removing Front Ashtray

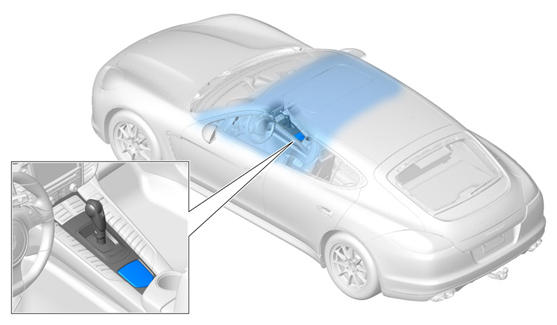

Fig 1: Identifying Front Ashtray Installation Position
G09811634Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening screws.

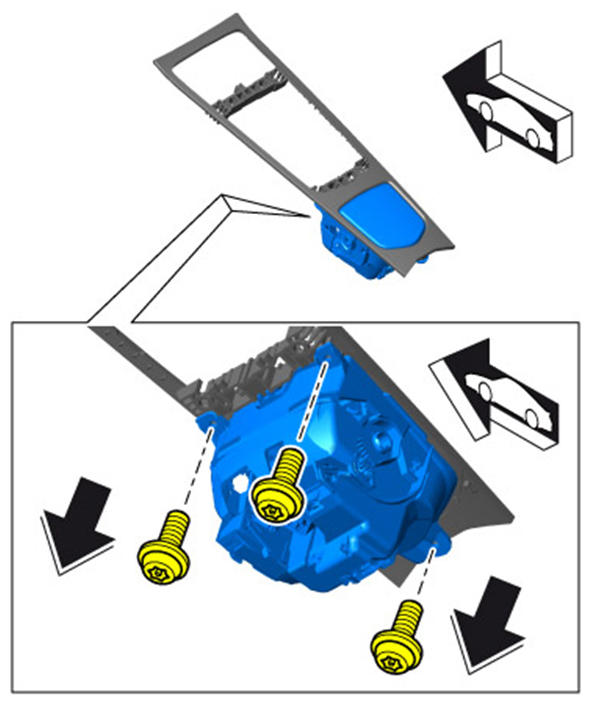

    Fig 2: Detaching Ashtray Mounting
    G09811635Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove ashtray from lower part of center console cover.

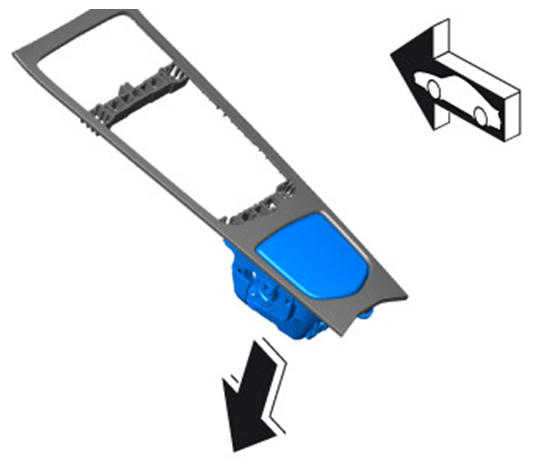

    Fig 3: Removing Ashtray
    G09811636Courtesy of PORSCHE CARS NORTH AMERICA, INC.
