Disassembling Centre Console

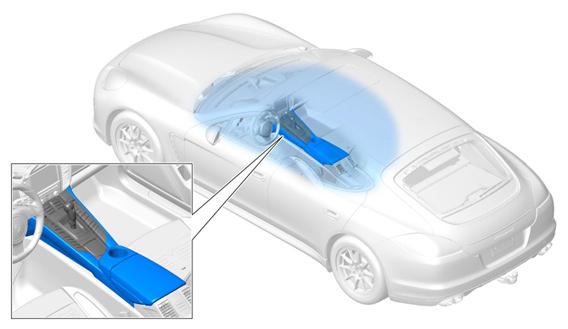

Fig 1: Identifying Centre Console Installation Position
G09811605Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Remove extension for cover for oddments tray. → Removing Extension For Oddments Tray Cover
  2. Remove cover for oddments tray. → Removing Cover For Oddments Tray
  3. Remove oddments tray. → Removing Oddments Tray
