Removing Glove Compartment Lid

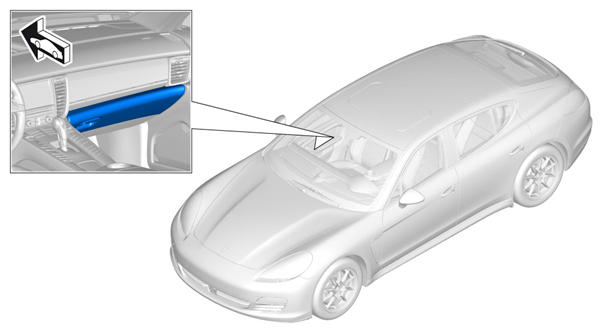

Fig 1: Identifying Glove Compartment Lid Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pull loop for rebound damping mechanism (glove compartment lid damper) out of the bracket -arrow A- and disengage it -arrow B- .

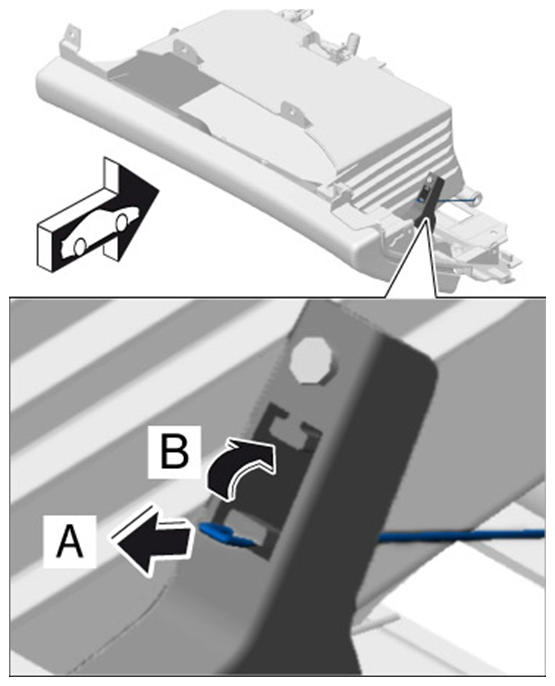

Fig 2: Disengaging Glove Compartment Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Drive hinge bolts at the left and right outwards -arrow- .

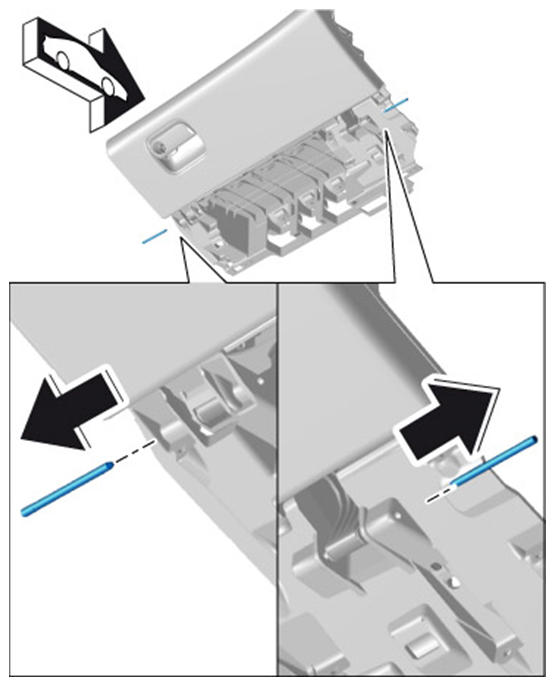

Fig 3: Driving Glove Compartment Lid Out Hinge Bolts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove glove compartment light switch -1- .
1. 3.1. Release cotter pin -arrow A- .
2. 3.2. Unscrew fastening screw -2- (-arrow B- ) and remove switch.

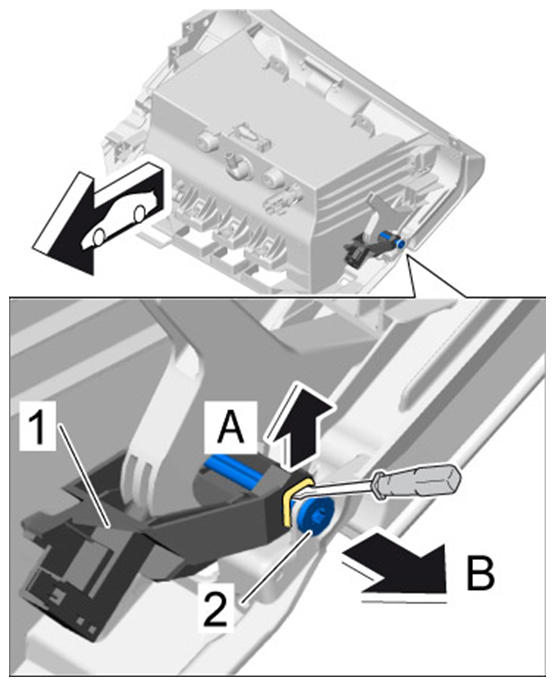

  Fig 4: Removing Glove Compartment Light Switch
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove glove compartment lid.
