Removing Glove Compartment Lock

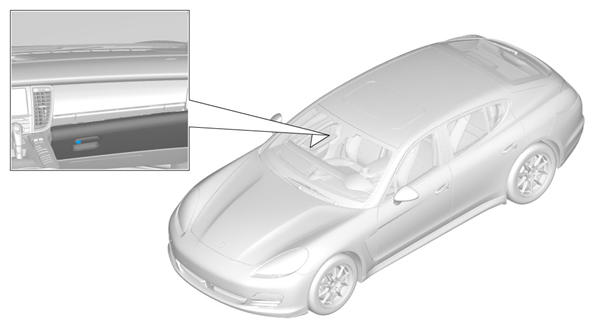

Fig 1: Identifying Glove Compartment Lock Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lift the handle -A- and release the locking mechanism for the lock -B-.
Remove securing mechanism from the lock.

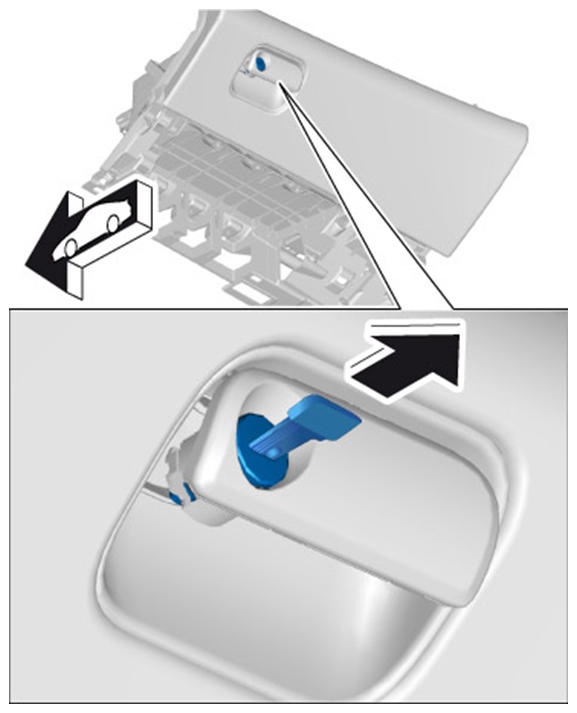

Fig 2: Opening Handle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert ignition key and pull the lock out of the handle.

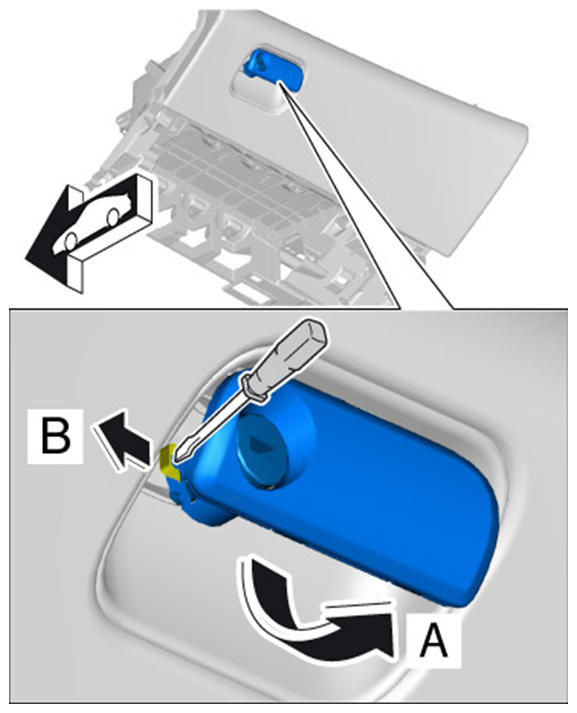

Fig 3: Removing Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
