Stopper After Cavity Preservation: Firewall

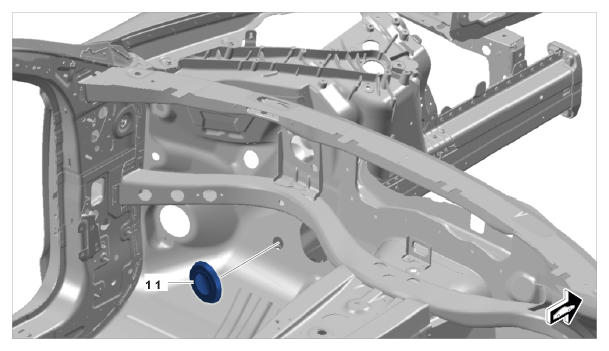

Fig 1: Identifying Firewall

G09809027

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

11 - Firewall (2x)
