Gap Dimensions Of Front Wing

→

Gap dimension: 3.5 mm+1 mm-0.5 mm (K1)

Gap dimension: -0.5 mm+1 mm-0.5 mm (K2)

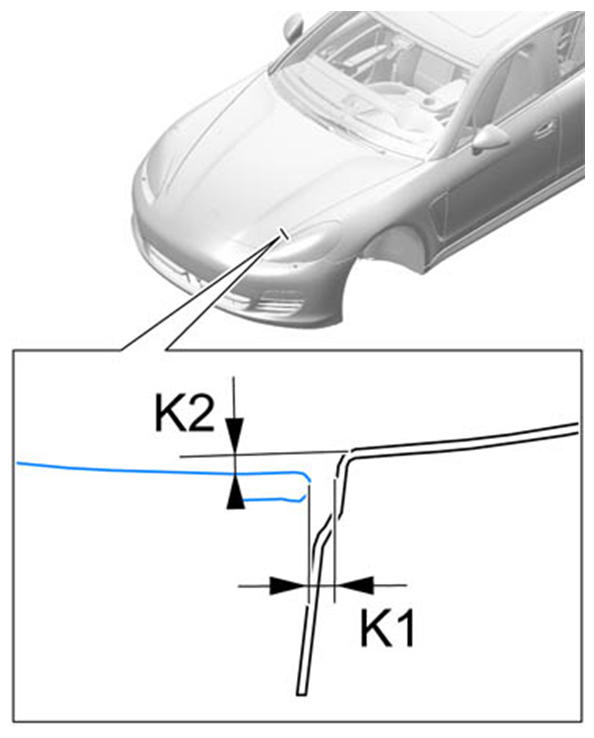

Fig 1: Identifying Gap Dimensions Of Front Wings (1 Of 2)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension

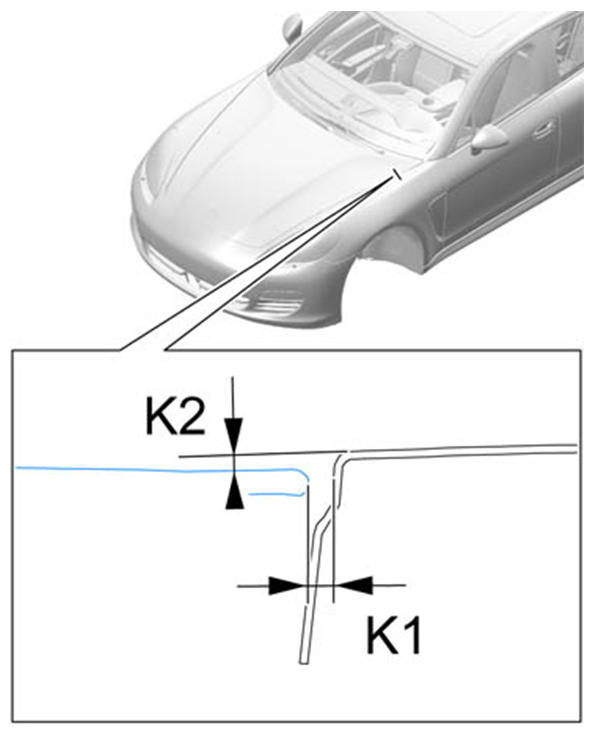

Fig 2: Identifying Gap Dimensions Of Front Wings (2 Of 2)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension

→

Gap dimension: 4.5 mm+1 mm-1 mm (K3)

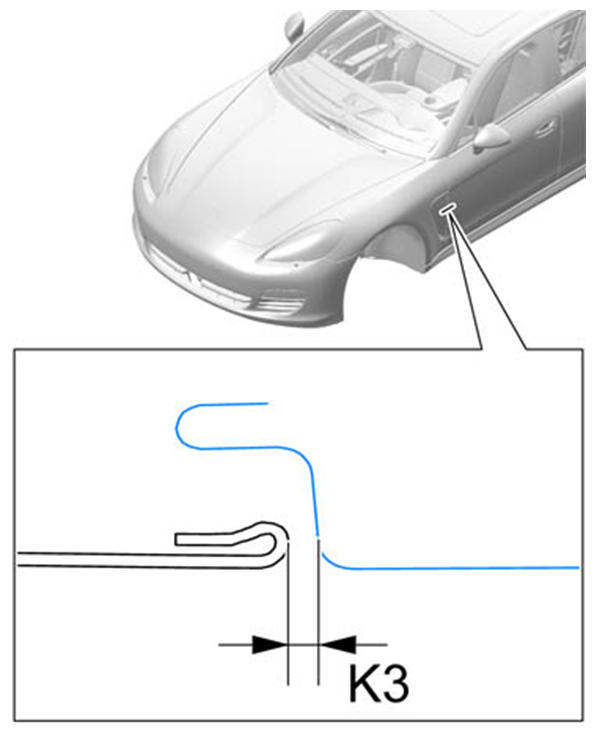

Fig 3: Identifying Gap Dimensions Of Front Wings (K3)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension

→

Gap dimension: 0 mm-1 mm (K3a)

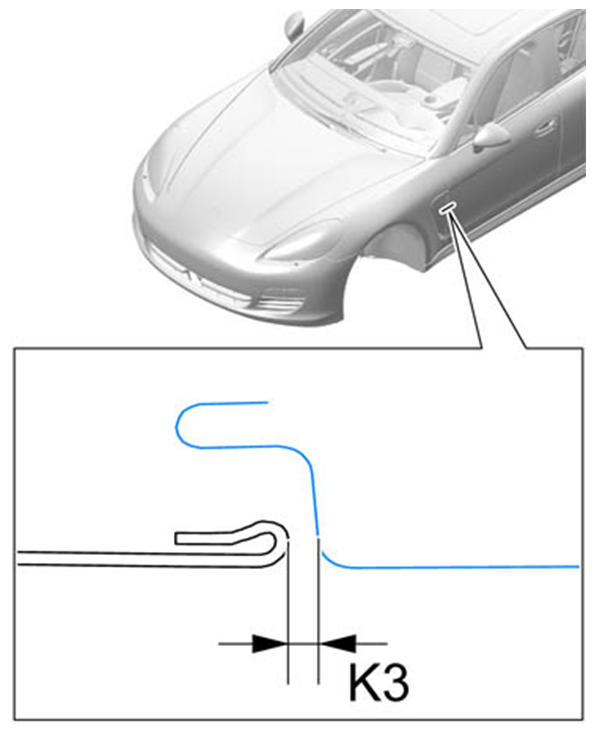

Fig 4: Identifying Gap Dimensions Of Front Wings (K3a)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension

→

Gap dimension: 4 mm+1.5 mm-0.5 mm (K4)

Gap dimension: 1 mm+1 mm-1 mm (K5)

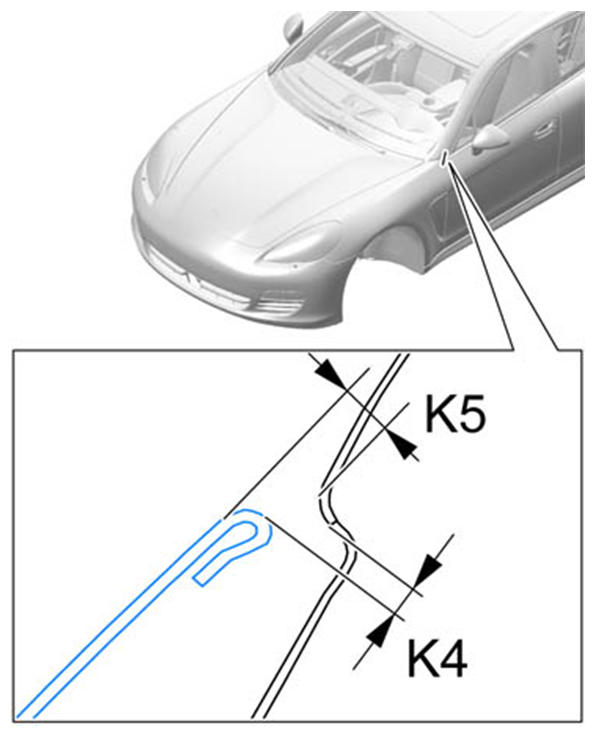

Fig 5: Identifying Gap Dimensions Of Front Wings (K4 & K5)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension

→

Gap dimension: 4.5 mm+1 mm-1 mm (K6)

Gap dimension: 0 mm+1 mm-1 mm (K7)

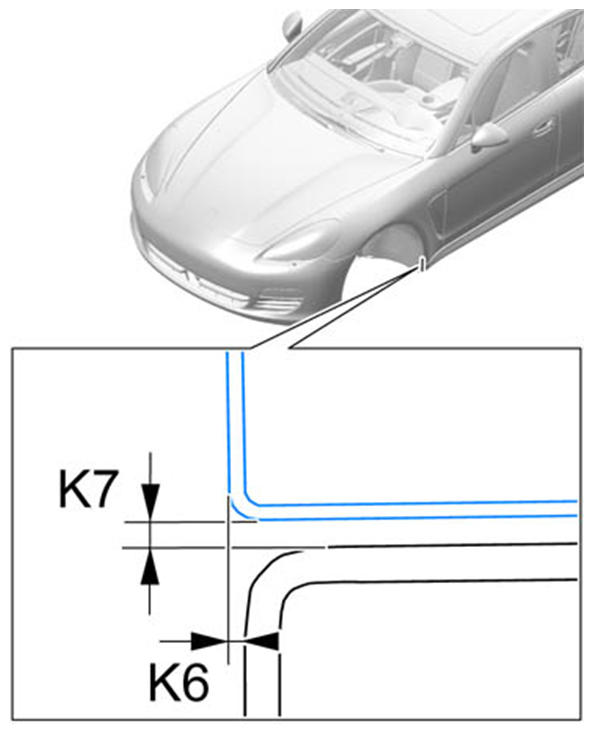

Fig 6: Identifying Gap Dimensions Of Front Wings (K6 & K7)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions

→
