Preliminary Work

  1. Remove engine cover (design cover). → 108319 REMOVING AND INSTALLING ENGINE COVER (DESIGN COVER)
  2. Remove oil mist separator. → 105519 REMOVING AND INSTALLING OIL MIST SEPARATOR
  3. Loosen intake port on throttle housing. For details, see → 243519 REMOVING AND INSTALLING AIR BOX FOR THROTTLE HOUSING
  4. Disconnect ventilation lines around the intake-air distributor. Naturally aspirated engine → Ventilation on naturally aspirated engines  or turbo engine → Ventilation on turbo engines  .

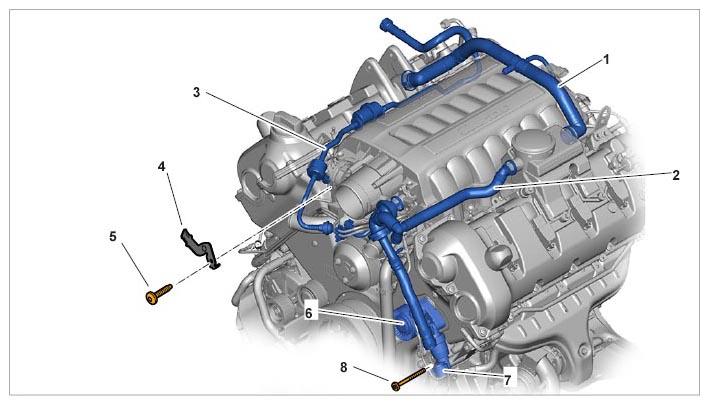

    Fig 1: Identifying Ventilation On Naturally Aspirated Engines
    G09805872Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. Engine ventilation line
    2. Oil mist separator line to intake-air distributor
    3. Tank ventilation
    4. Aluminum holder
    5. Aluminum screw (holder); see Timing-case cover

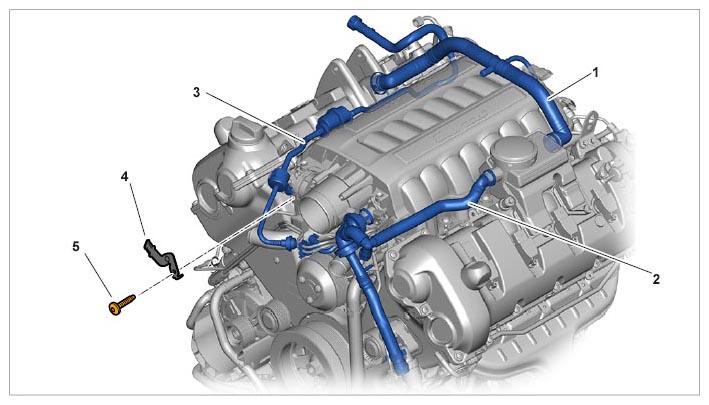

      Fig 2: Identifying Ventilation On Turbo Engines
      G09805873Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. Engine ventilation line
    2. Oil mist separator line to intake-air distributor
    3. Tank ventilation
    4. Aluminum holder
    5. Aluminum screw (holder); see Timing-case cover
