WM 244619 Removing And Installing Intake-Air Distributor (PANAMERA, PANAMERA 4, PANAMERA Turbo, PANAMERA Turbo Executive, PANAMERA Turbo S, PANAMERA Turbo S Executive, PANAMERA GTS): Information

Component overview

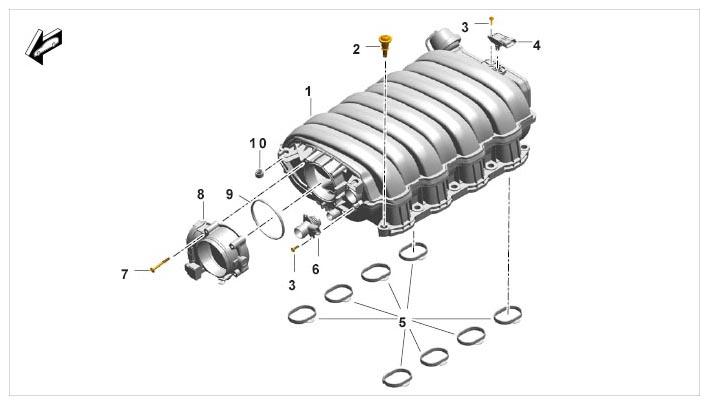

Fig 1: Identifying Intake Module On Naturally Aspirated Engine

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Intake module
2. Decoupling module (fastening part); observe specified tightening sequence
3. Screw, 5 x 16
4. Pressure sensor
5. Intake module seal; check that seal is aligned and fitted correctly!
6. Heat socket
7. Screw, 6 x 50
8. Electronic accelerator
9. Seal
10. Ball socket

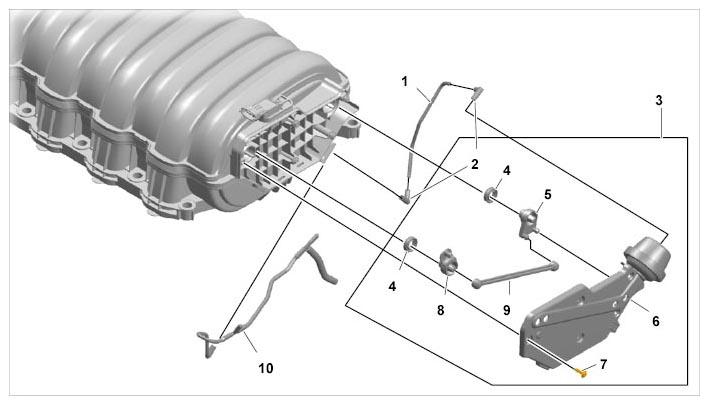

    Fig 2: Identifying Actuator For Variable Intake Manifold On Naturally Aspirated Engine

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. Pipe
    2. Connecting piece
    3. Variable intake manifold adjuster/adjusting unit
    4. Lip seal
    5. Connecting element
    6. Vacuum unit with cover (actuator)
    7. Screw, M5 x 16
    8. Driver
    9. Connecting link
    10. Vacuum line

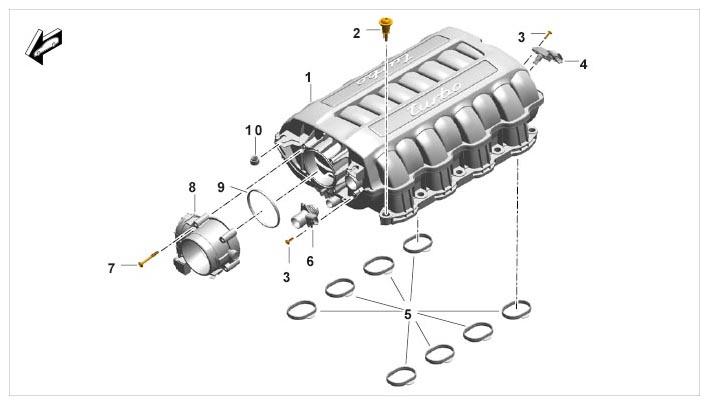

        Fig 3: Identifying Intake Air Module On Turbo Engine

        Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Intake module
2. Decoupling module (fastening part); observe specified tightening sequence
3. Screw, 5 x 16
4. Pressure sensor
5. Intake module seal; check that seal is aligned and fitted correctly!
6. Heat socket
7. Screw, 6 x 50
8. Electronic accelerator
9. Seal
10. Ball socket
