Removing Fuel Injector

→ Ventilate the work area well.

→ Never ingest or inhale.

→ Read specific information on the Hazard Sheet.

→ Do not smoke, eat or drink in the work area.

→ Avoid contact with hot parts or sources of ignition.

→ Use suction to remove ignitable vapours.

→ Attach warning sign in a clearly visible position.

→ Thoroughly clean connection points and adjacent areas before loosening them. If the engine is very dirty, wash it before starting disassembly work.

→ Lay removed parts on a clean surface and cover them. Do not use fibre-shedding cloths.

→ Carefully cover components or seal them if repair work will not be carried out immediately. Place rubber caps on connections. Seal intake openings with film or adhesive tape.

→ Only install clean parts. Do not take spare parts out of the packaging until just before installation.

→ Never use compressed air when the system is open. Do not move the vehicle.

Information

Absorb any escaping fuel using a suitable binding material or a cloth.

Cloths which have absorbed fuel must be disposed of according to the applicable national laws.

The fuel system must be depressurized before starting work on it.

Only work on the fuel system in well-ventilated rooms.

Any seals which have been removed must always be replaced.

Do not use any sealant containing silicone or silicone spray when the injection system is open. Traces of silicone drawn in by the engine are not combusted and damage the oxygen sensors.

Information

The tool numbers refer to the individual parts of the tools in the repair kit T10133  and the supplement set T10133/11-15  (unless indicated otherwise).

1. Pull cable plugs off the injectors. -arrows-

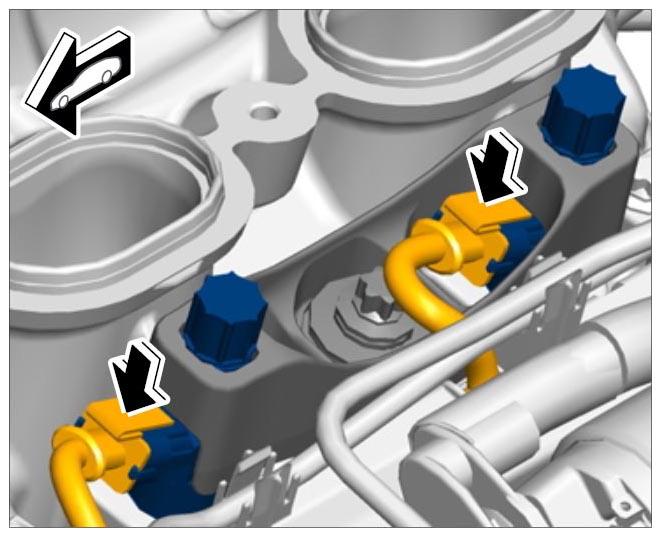

   Fig 1: Pulling Cable Plugs Off Injectors

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Remove screw on retainer and remove retainer from the injectors → Retainer for injectors  . To do this, use both hands to pull off the retainer against the resistance of the upper damping rings. Tilt the retainer carefully back and forth with pliers if necessary and remove it.

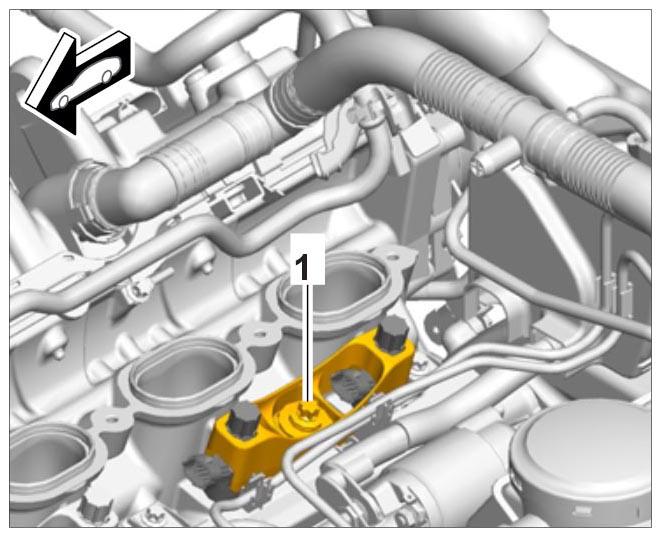

   Fig 2: Identifying Retainer For Injectors

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Pull injector out of the cylinder head by hand (use a glove!).

   If the injector is stuck in the cylinder head due to coking of the injector tips, proceed as follows:

4. Grip injector at the connecting taper at the top using a suitable open-ended wrench and carefully turn the injector back and forth without using force (if any part of the injector body is damaged during removal, the entire injector must be replaced). → Removing injector

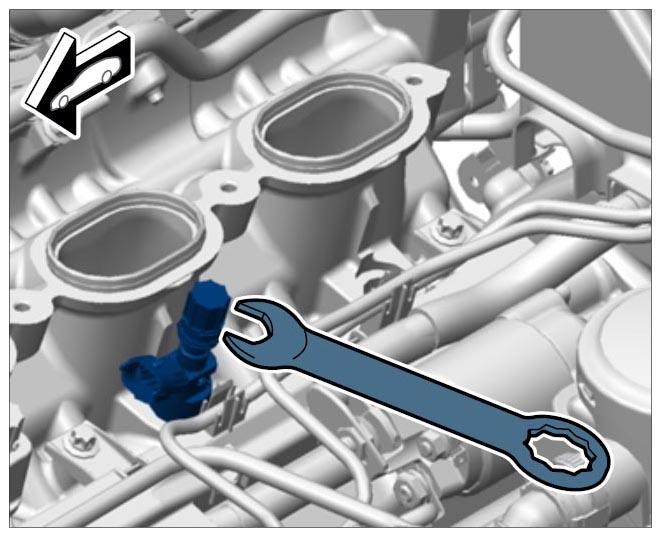

   Fig 3: Removing Injector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Bolt impact hammer no. 3 to adapter 9757 -1-  .

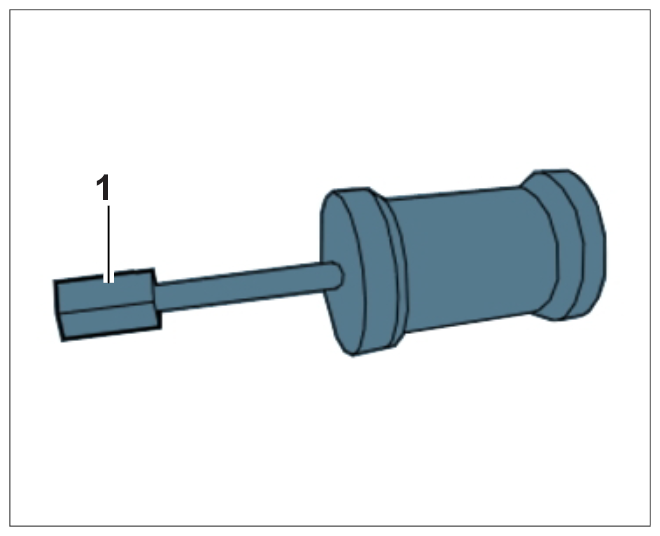

   Fig 4: Identifying Impact Hammer And Puller

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Fit impact hammer and puller onto the thread of the injector and carefully remove injector by hitting it straight on a number of times. (Remember that if any part of the injector body is damaged during removal, the entire injector must be replaced.) → Impact hammer on injector

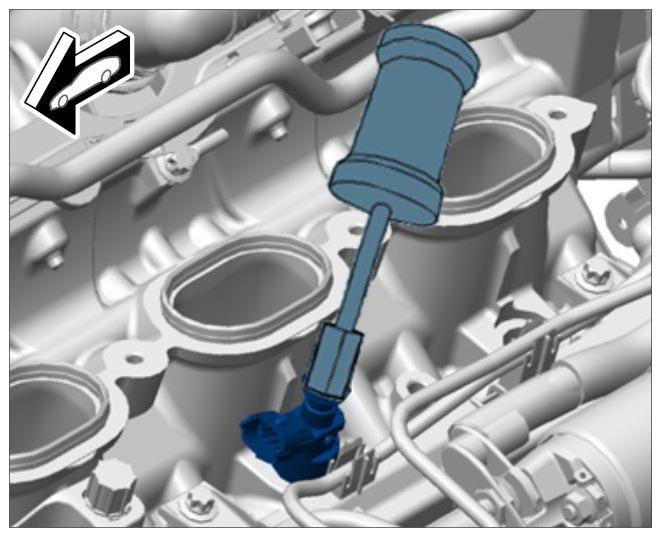

   Fig 5: Identifying Impact Hammer On Injector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
