Intake Noise Generator

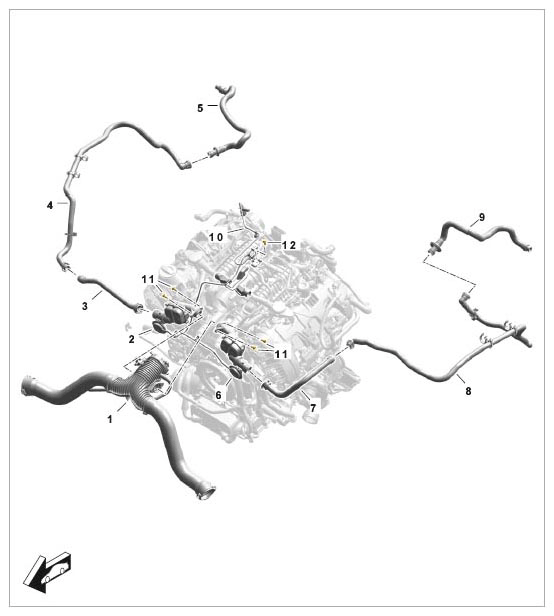

Fig 1: Identifying Intake Noise Generator
G09805789Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Throttle body
  2. Intake noise generator
  3. Line at front right 4  - Line at center right
  4. Line at rear right
  5. Intake noise generator
  6. Line at front left
  7. Line at center left
  8. Line at rear left
  9. Vacuum line
  10. Screw → Tightening torque: 25 Nm (19 ftlb.)
  11. Screw → Tightening torque: 0 Nm (0 ftlb.)
