Removing Air Box For Air Cleaner

Naturally aspirated engines =>

1. Remove intake pipes -4-  from the air cleaner housing. To do this, loosen clamps -5-  and pull off intake pipes.

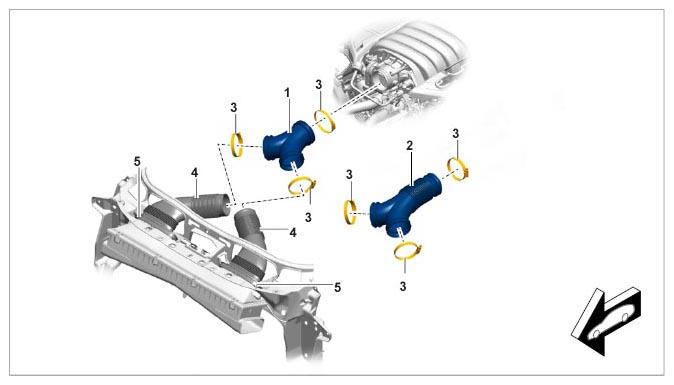

   Fig 1: Identifying Intake Pipes

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Turbo engines =>

2. Remove intake manifolds at the left and right (-1-  and -1-  ). To do this, loosen screw-type clamps and pull off the intake manifolds.

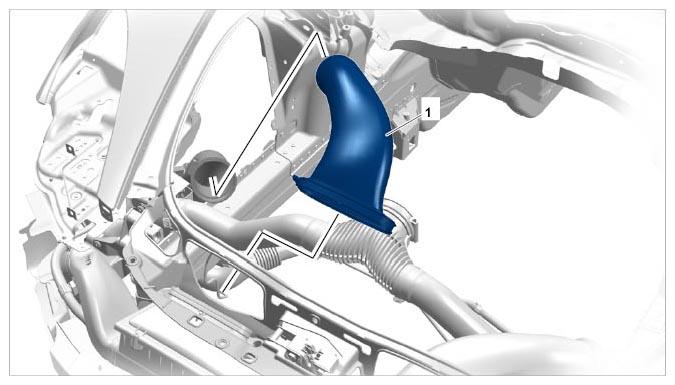

   Fig 2: Identifying Air Cleaner Outlet On Turbo Engine (Left)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. Left intake manifold

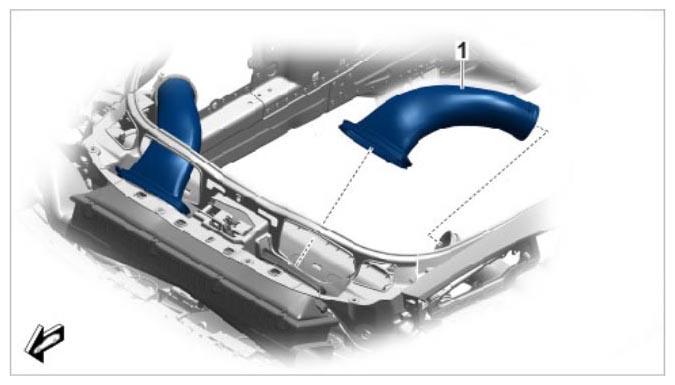

      Fig 3: Identifying Air Cleaner Outlet On Turbo Engine (Right)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. Right intake manifold

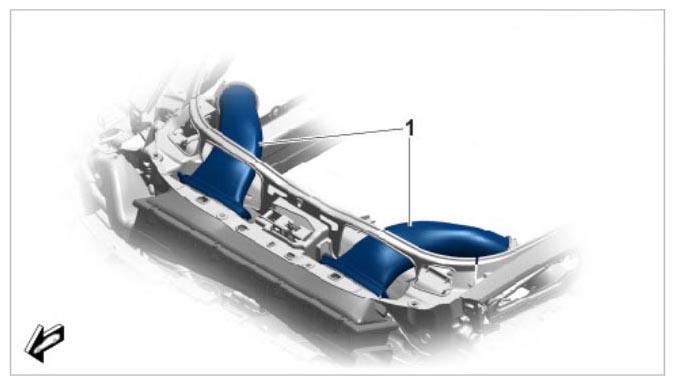

      Fig 4: Identifying Intake Pipes Downstream Of Air Cleaner

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
