Overview Of Air Cleaner Housing And Peripheral Components

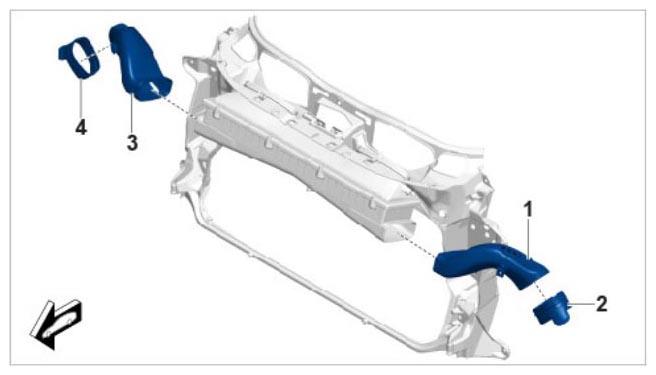

Fig 1: Identifying Air Guide For Air Cleaner (Turbo Engine)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Left air guide
2. Grommet
3. Right air guide
4. Grommet
   Fig 2: Identifying Air Guide For Air Cleaner (Naturally Aspirated Engine)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Left air guide
2. Right air guide
3. Grommet
4. Grommet
5. Expansion rivet

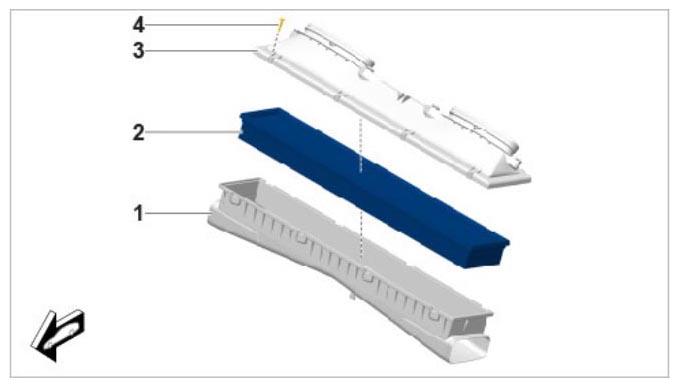

   Fig 3: Identifying Air-Cleaner Element

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Lower part of housing
2. Filter element
3. Upper part of housing
4. Self-tapping screws and washers

Fig 1: Identifying Air Guide For Air Cleaner (Turbo Engine)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Left air guide
2. Grommet
3. Right air guide
4. Grommet
   Fig 2: Identifying Air Guide For Air Cleaner (Naturally Aspirated Engine)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Left air guide
2. Right air guide
3. Grommet
4. Grommet
5. Expansion rivet
   Fig 3: Identifying Air-Cleaner Element

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Lower part of housing
2. Filter element
3. Upper part of housing
4. Self-tapping screws and washers
