Removing Air-Cleaner Element

  1. Remove air guide under the air cleaner housing.
    1. 1.1. Remove clips -2-  .
    2. 1.2. Remove air guide -1-  .

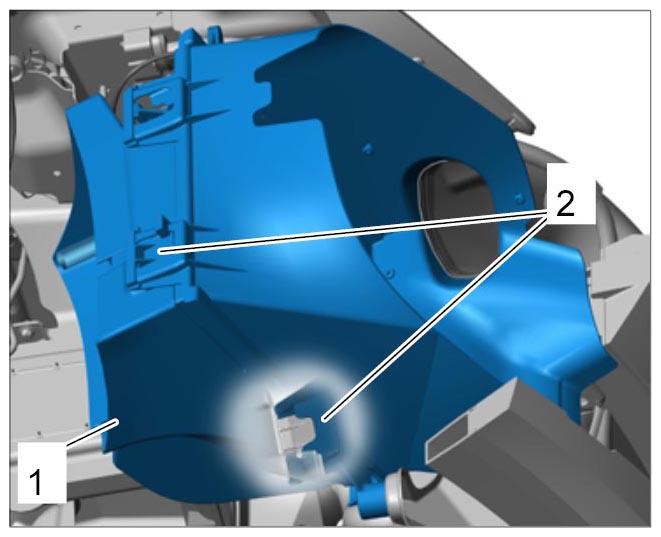

      Fig 1: Identifying Air Guide Of Air Cleaner Housing
      G09805705Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove air cleaner housing cover.
    1. 2.1. Unscrew three Torx screws -2-  and remove cover -1-  .

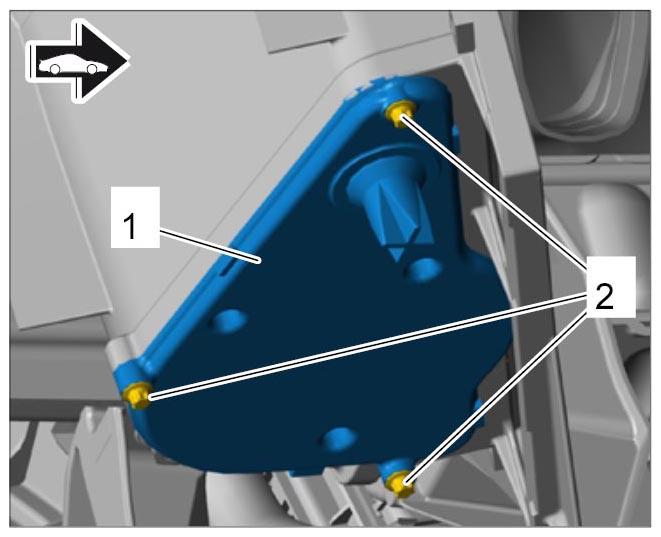

      Fig 2: Identifying Air Cleaner Housing Cover
      G09805706Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove air-cleaner element -1-  .

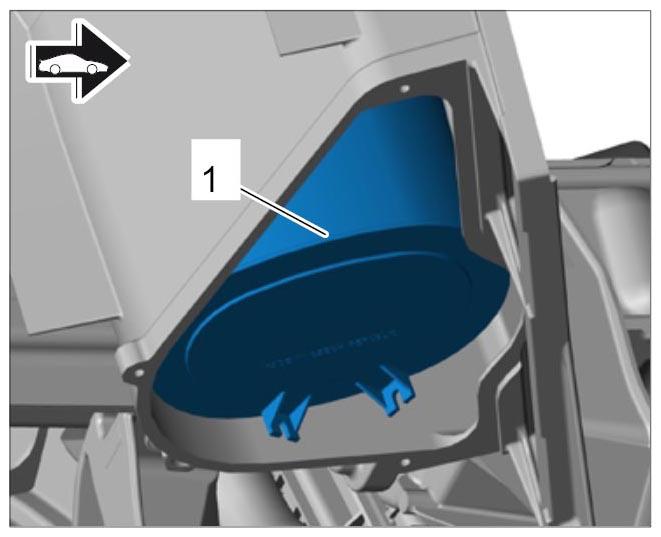

    Fig 3: Identifying Air-Cleaner Element
    G09805707Courtesy of PORSCHE CARS NORTH AMERICA, INC.
