WM 208019 Removing And Installing Accelerator Pedal Module (Except PANAMERA Executive, PANAMERA GTS, PANAMERA 4S Sport Edition, PANAMERA 4 Executive): Information

The accelerator pedal is an electronic accelerator pedal module without a mechanical accelerator cable. The electric printed circuit board, among other things, is integrated in the accelerator pedal module. On vehicles with PDK, the accelerator pedal also has a spring-loaded aneroid diaphragm -3-  for kickdown simulation. The integrated pedal stop means that a basic kickdown setting is no longer required.

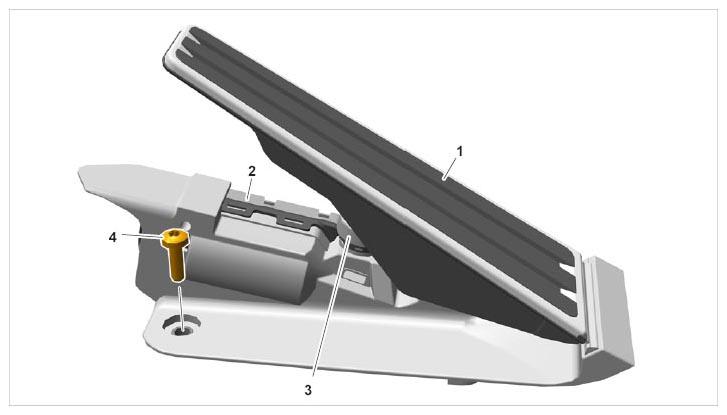

Fig 1: Overview Of Accelerator Pedal Module

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
