Preliminary Work

→ Ventilate the work area well.

→ Never ingest or inhale.

→ Read specific information on the Hazard Sheet.

→ Do not smoke, eat or drink in the work area.

→ Avoid contact with hot parts or sources of ignition.

→ Use suction to remove ignitable vapours.

→ Attach warning sign in a clearly visible position.

Information

The fuel filter is integrated in the right connection unit, while the pressure regulator is in the fuel pump (delivery unit).

1. Drain the fuel tank if necessary. → Draining Fuel (Emptying Fuel Tank) 2010EN Draining and filling the fuel tank (draining and filling fuel)

   The fuel tank should be drained before opening the flanges under the rear seat. If the displayed fuel level is less than the reserve, there is no need to drain the tank.

1. Remove (pull off) the right cover -3-  in the bodyshell opening.
   1. 1.1. Loosen and fold up the right rear seat. → REMOVING REAR SEAT
   2. 1.2. Pull off the right cover under the rear seat. -3-

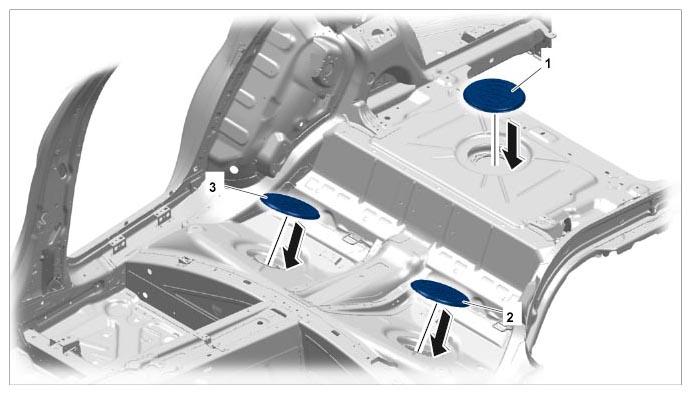

      Fig 1: Pulling Off Right Cover

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
