Installing Fuel Line

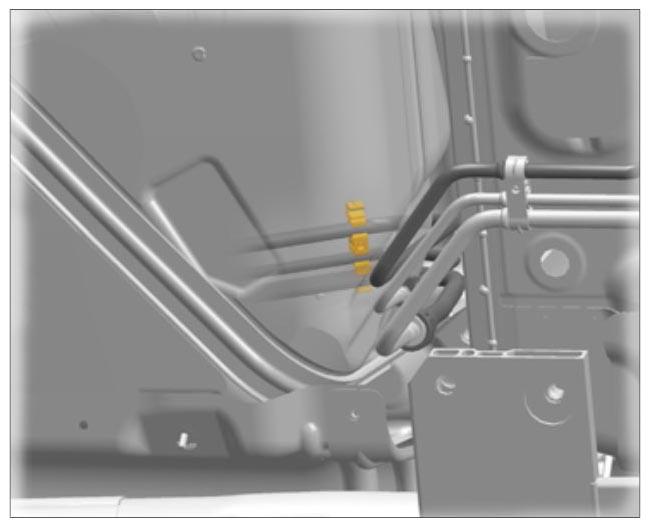

Clip in fuel line over the fuel tank.

Fig 1: Identifying Fuel Line Over Fuel Tank
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

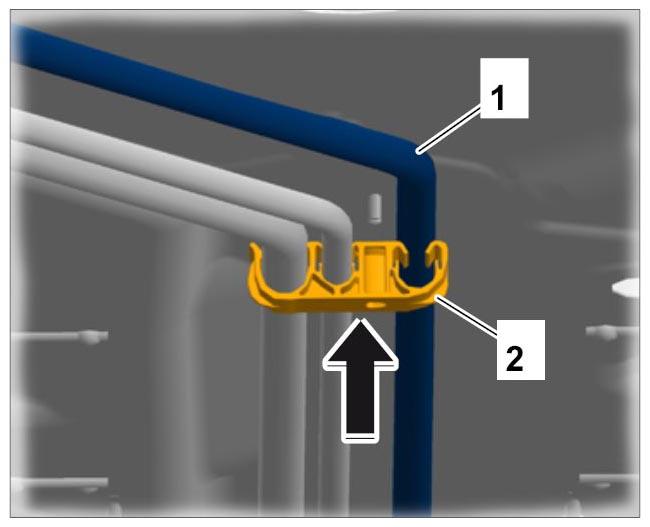

Clip fuel line -1- into the mountings -2- on the underbody.

Fig 2: Clipping Fuel Line Into Mountings Underbody
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

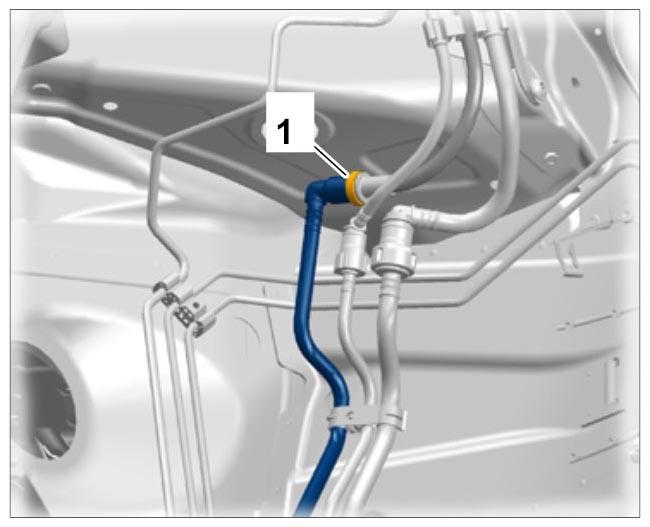

Connect line connection in the front wheel housing area.

Fig 3: Identifying Fuel Line Connection Points In Front Right Wheel Housing Area
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
