Subsequent Work

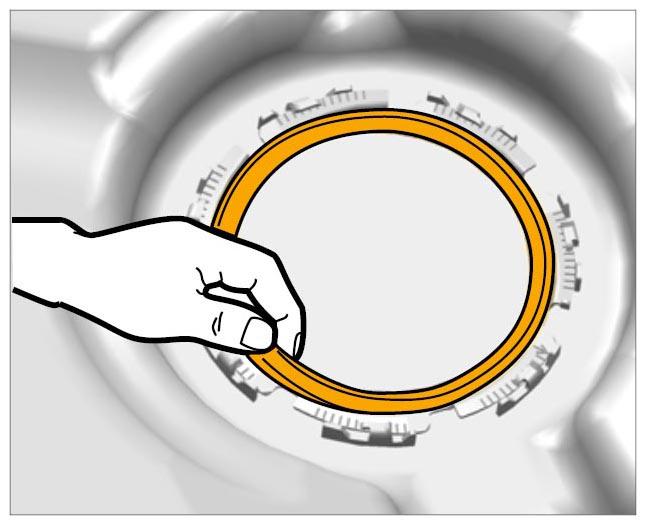

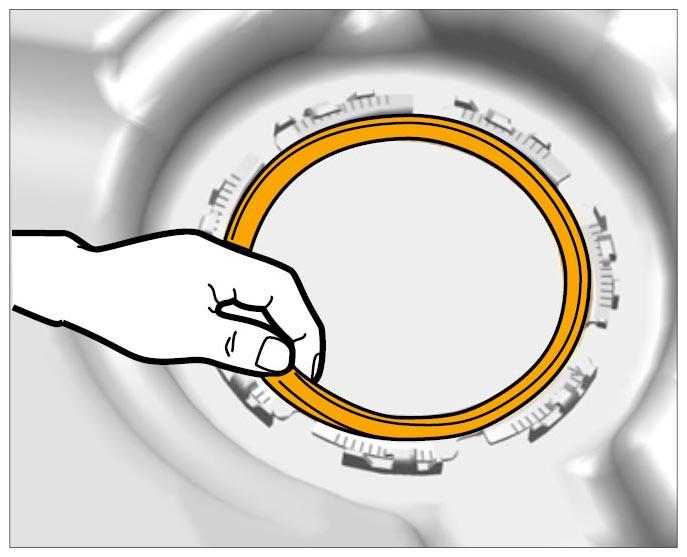

- Replace seals when refitting the flanges. → Seals on flanges
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

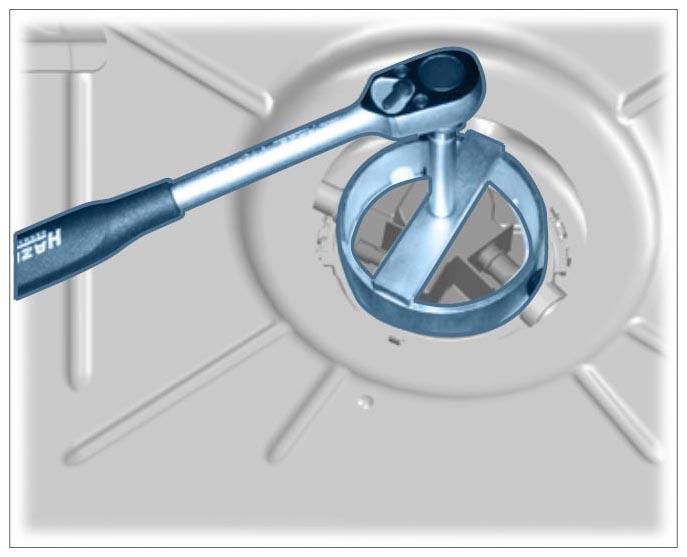

- Fit the flanges using a wrench T10202
. → Loosening flange ring
→ Tightening torque: 110 Nm (81.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

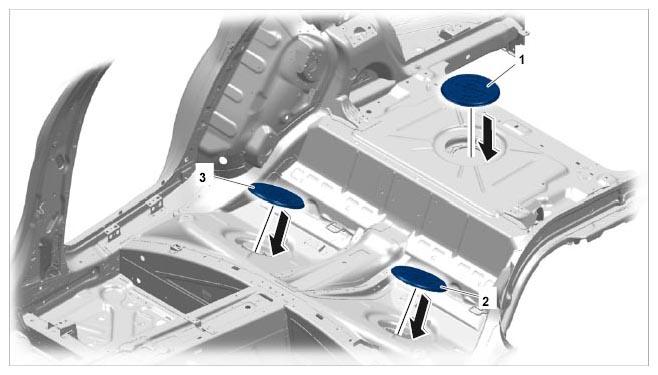

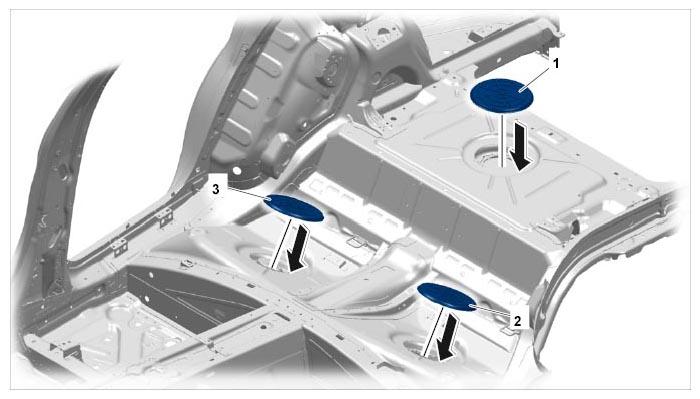

- Fit bodyshell cover. → Cover and bodyshell openings
Be careful of the lug on the bodyshell cover and the cut-out on the body panel when doing this.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Fit luggage compartment cover. → INSTALLING CENTRE TRIM PANEL FOR LUGGAGE COMPARTMENT (LUGGAGE COMPARTMENT COVER)
- Fit rear seats if necessary. → INSTALLING REAR SEAT
