Subsequent Work

Fit rear axle (spring struts and rear axle housing).
Fit rear wheel housing liner at the right.

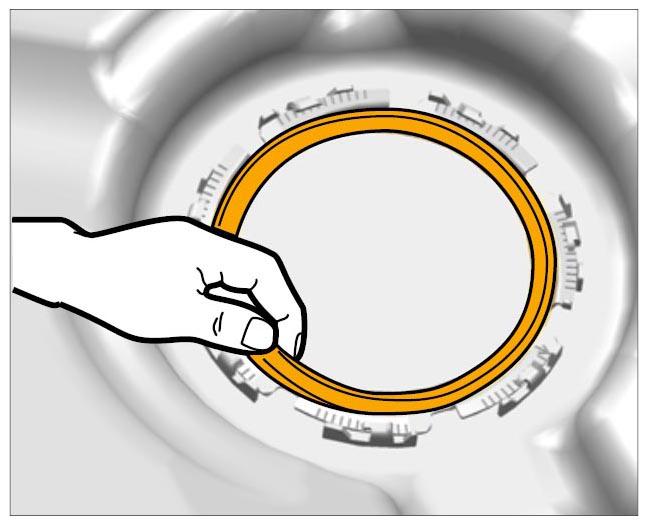

Replace seals when refitting the flanges (if removed). → Seals on flanges

Fig 1: Removing Seals On Flanges
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

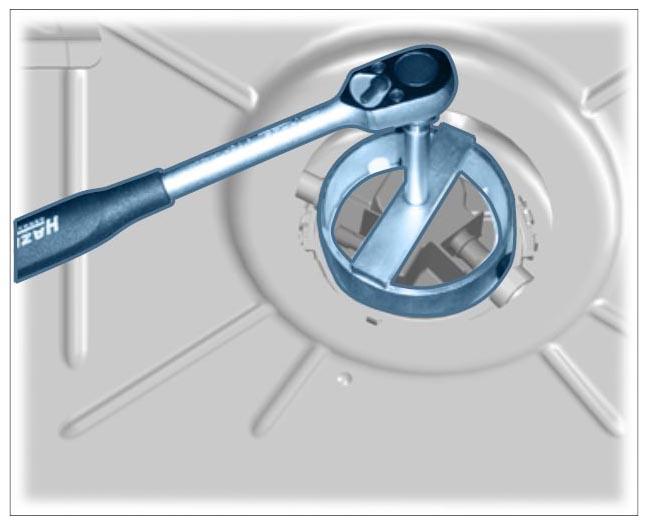

Fit the flanges using a wrench T10202 .
→ Securing flange ring → Tightening torque: 110 Nm (81.5 ftlb.)

Fig 2: Securing Flange Ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit fuel tank flange connections under the rear seats.

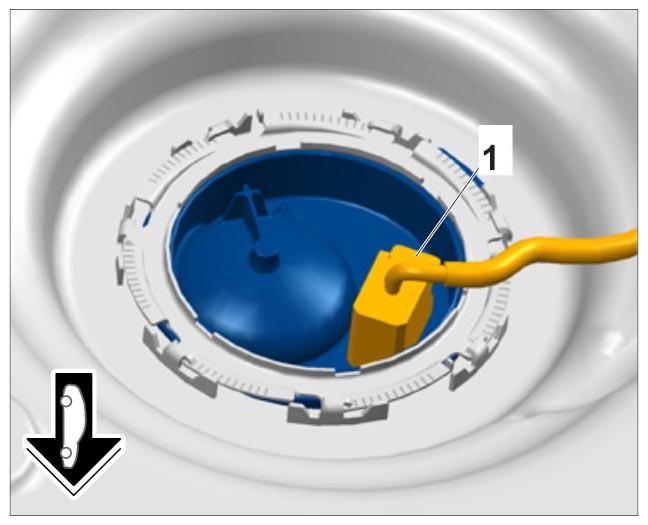

1. 5.1. Fit electric plug connection on the left fuel tank flange. → Electric connection on left flange

  Fig 3: Identifying Electric Connection On Left Flange
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

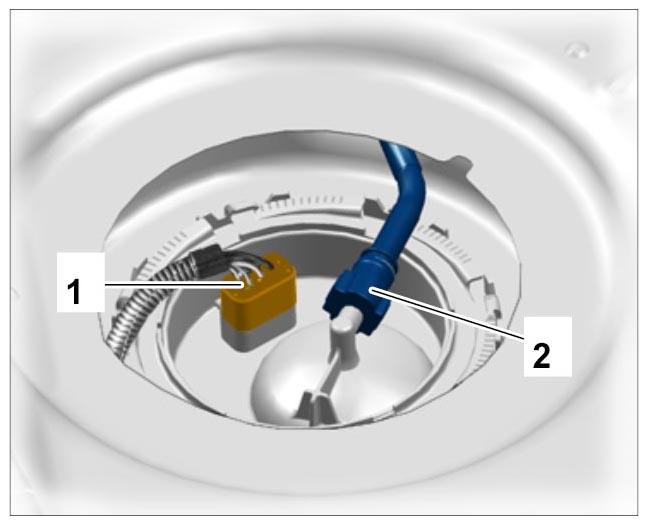

2. 5.2. Fit connections on the right fuel tank flange.
  -1 and 2-

  Fig 4: Identifying Right Fuel Tank Flange Connections
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

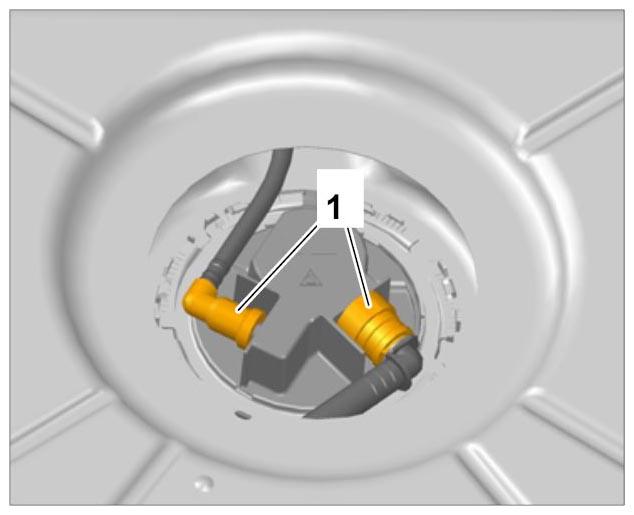

Connect connection -1- at the ventilation flange.

Fig 5: Identifying Tank Ventilation Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

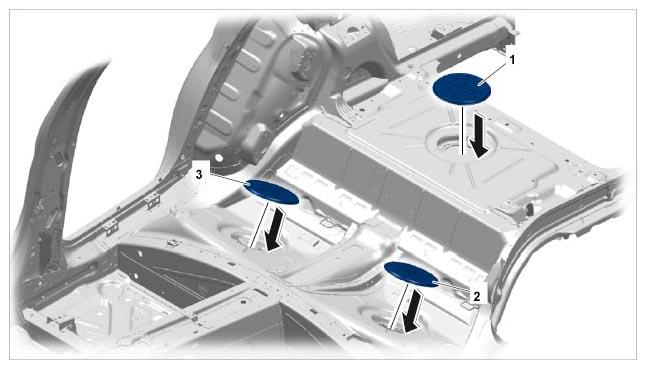

Fit bodyshell cover. → Cover and bodyshell openings Be careful of the lug on the bodyshell cover and the cut-out on the body panel when doing this.

Fig 6: Fitting Bodyshell Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Carry out remaining work if necessary.
