Preliminary Work

→ Wear personal protective gear.

→ Get someone to help if necessary.

Information

For safety reasons, the fuel tank should only be removed and installed when empty. For details of how to drain the fuel tank, see → 2010EN DRAINING AND FILLING THE FUEL TANK

Information

When pulling off fuel supply lines, use cloths to soak up fuel (wrap around lines).

1. Place a warning sign in a clearly visible position in the work area or on the vehicle.
2. Relieve the fuel pressure.
   1. 2.1. Switch off ignition.
   2. 2.2. Pull out the fuse for the fuel pump/control unit.
   3. 2.3. Start the engine and wait until the engine stops running by itself.
3. Drain the fuel tank if necessary.→ Draining Fuel (Emptying Fuel Tank) 2010EN Draining and filling the fuel tank (draining and filling fuel)

   The fuel tank should be drained before opening the flanges under the rear seat. If the displayed fuel level is less than the reserve, there is no need to drain the tank.

4. Remove (pull off) all covers -1, 2 and 3-  in the bodyshell opening.
   1. 4.1. Remove rear seat. → REMOVING REAR SEAT

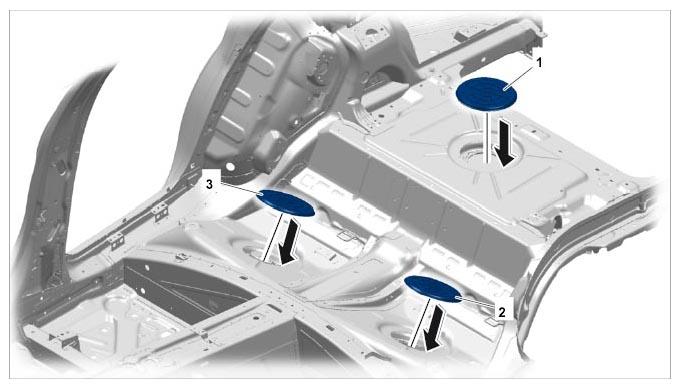

      Fig 1: Locating Covers And Bodyshell

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Release and remove upper flange connections (expose flange rings).
   1. 5.1. Release and remove both connections -1-  on the tank ventilation flange.

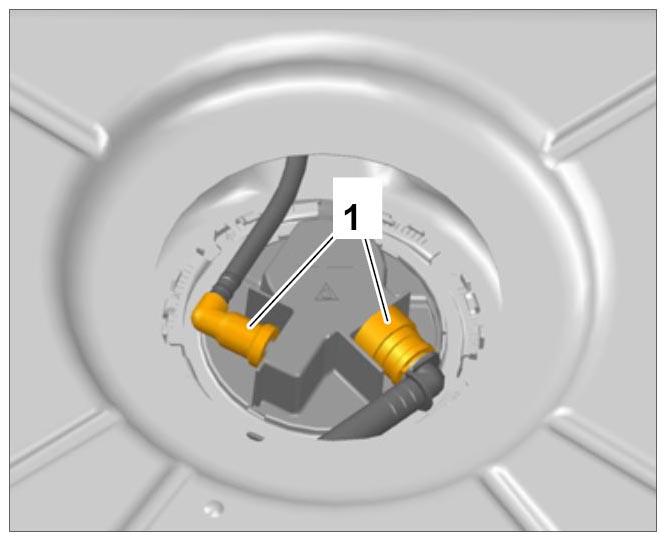

      Fig 2: Identifying Tank Ventilation Connections

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      To do this, press the push-on connectors from below using assembly tool T10118  as required.

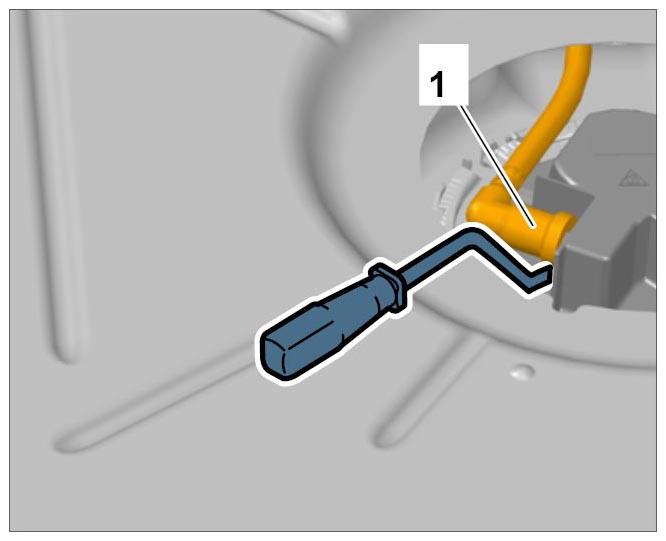

      Fig 3: Identifying Assembly Tool (T10118)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 5.2. Release connections -1 and 2-  and remove them from the right flange.

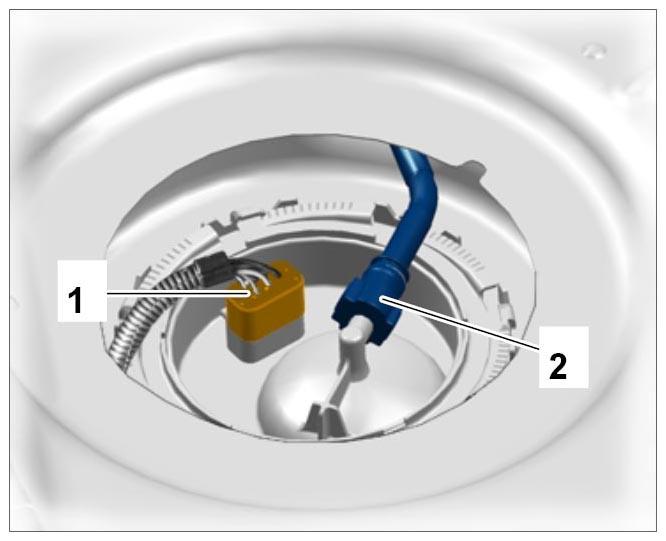

      Fig 4: Identifying Right Flange Connections

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   3. 5.3. Disconnect electric connection -1-  on the left flange.

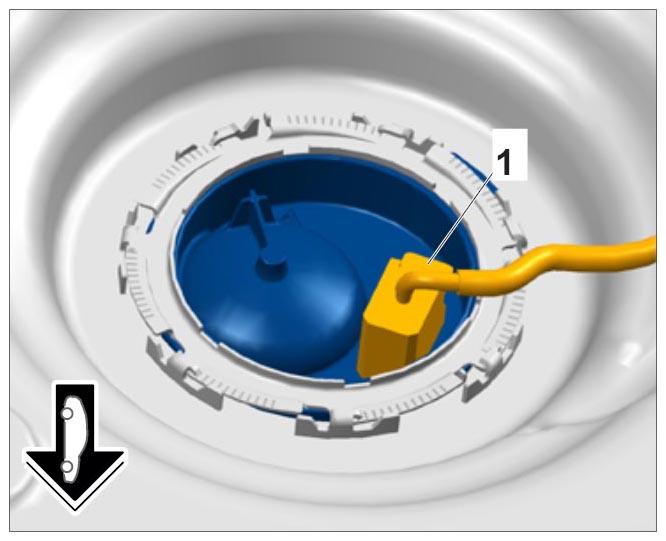

      Fig 5: Identifying Electric Connection On Left Flange

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Remove rear wheel housing liner at the right.
7. Remove rear axle (spring struts and rear axle housing) and push it aside on a lifting platform.

   → REMOVING REAR AXLE HOUSING

   Scope of work without disassembling the rear axle further.
