Test Tool Setup

Test equipment - pressure gauge (without stopcock) K-Jetronic pressure tester V.A.G. 1318 WE 1291
Connecting line connecting line 9705/3 (both lines) => Connection to
Adapter 1318/15
Adapter 1318/23
Connecting line connecting lines P378c
Adapter 1318/12 => Connection to line on engine side

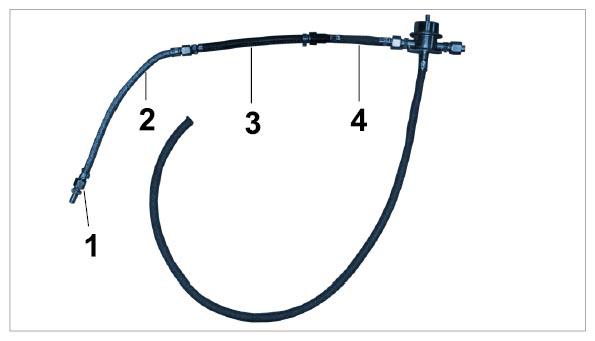

Fig 1: Identifying Pressure Test Tool

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

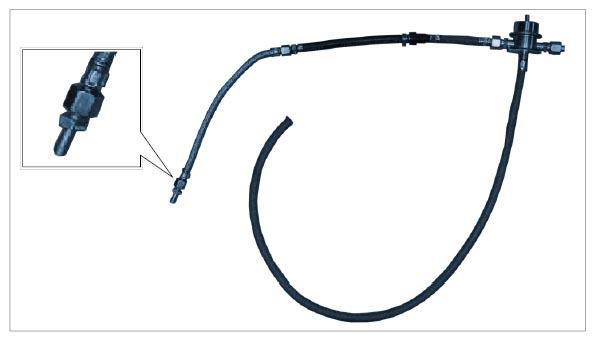

Fig 2: Identifying Pressure Test Tool (3.0 L V6 Biturbo Engine)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

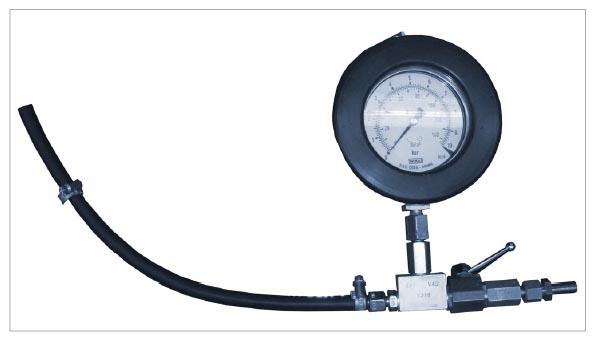

Fig 3: Identifying Pressure Test Tool (3.0 L V6 Biturbo Engine)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

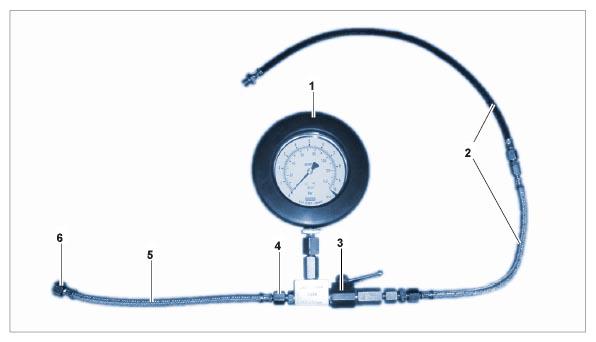

Fig 4: Identifying Adapter, Connecting Line And Pressure Reducer

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

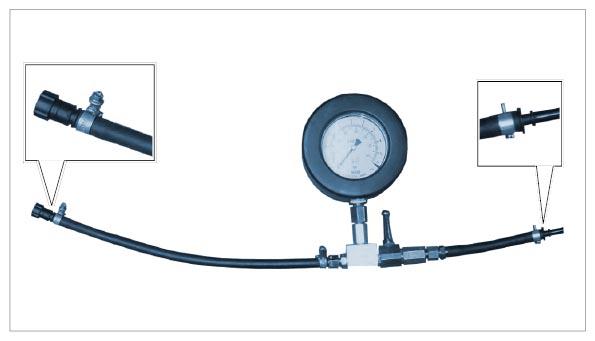

Fig 5: Checking Delivery Rate

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
