Removing Boost Pressure Sensor

  1. Remove boost pressure sensor.
    1. 1.1. Release electric plug connection for the boost pressure sensor -1-  and disconnect it.
    2. 1.2. Unscrew screw -2-  for the boost pressure sensor -1-  and carefully lever off the boost pressure sensor -1-  .

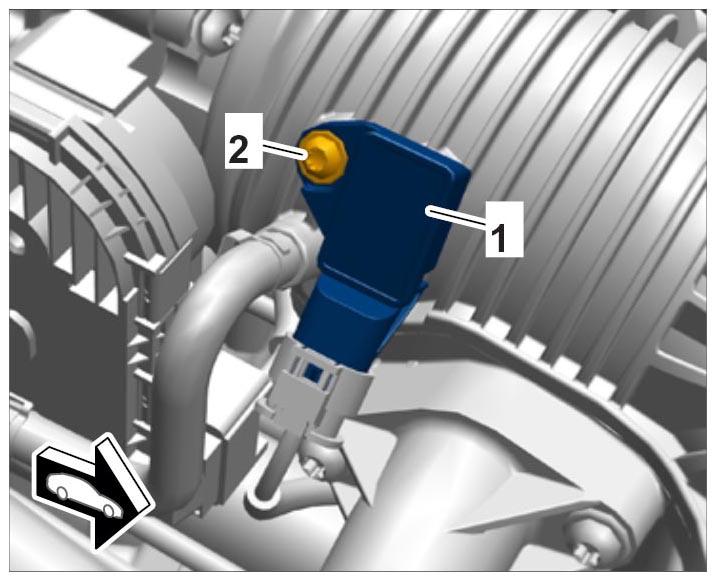

      Fig 1: Identifying Boost Pressure Sensor And Screw
      G09805680Courtesy of PORSCHE CARS NORTH AMERICA, INC.
