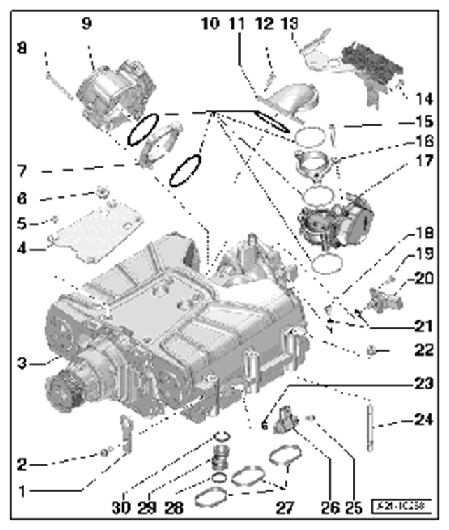

Assembly Overview - Compressor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Engine suspension eyelet
- Screw → Tightening torque: 27 Nm (20 ftlb.)
- Compressor
- Insulation plate
- Screw → Tightening torque: 5 Nm (3.5 ftlb.)
- Rubber sleeve
- Intermediate flange
- Screw → Tightening torque: 10 Nm (7.5 ftlb.)
- Throttle valve control unit
- O-rings/replace
- Connection piece
- Screw → Tightening torque: 10 Nm (7.5 ftlb.)
- Change-over valve holder
- Screw → Tightening torque: 9 Nm (6.5 ftlb.)
- Screw → Tightening torque: 10 Nm (7.5 ftlb.)
- Intermediate flange
- Regulating valve control unit
- Bleeder screw for left charge-air cooler
- Screw/replace → Tightening torque: 10 Nm (7.5 ftlb.)
- Intake air temperature sensor
- O-rings/replace
- Nut → Tightening torque: 20 Nm (15 ftlb.)
- O-ring/replace
- Threaded pin
- Screw/replace → Tightening torque: 10 Nm (7.5 ftlb.)
- Boost pressure sensor
- Seals/replace
- O-ring/replace
- Positive crankcase ventilation adapter
- O-ring/replace
