Removing Right Catalytic Converter

→ Let hot components cool down.

→ Wear personal protective gear.

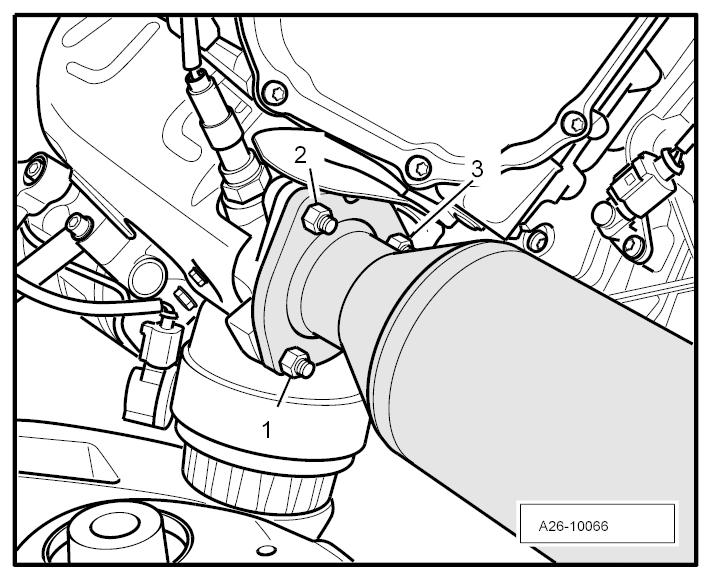

1. Unscrew the nuts that can be reached from below -1, 2, 3-  on the connection between the front exhaust pipe and the exhaust manifold.
   Fig 1: Identifying Catalytic Converter On Exhaust Manifold (Similar Illustration)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

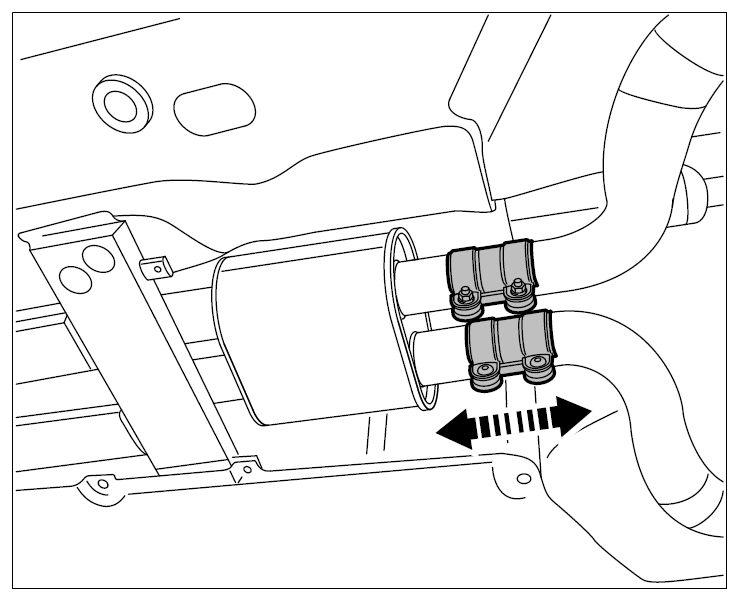

2. Loosen right clamping sleeve. Push the clamp backwards onto the exhaust system. The clamping sleeve -arrow-  must not be re-used.
   Fig 2: Removing Clamping Sleeves

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

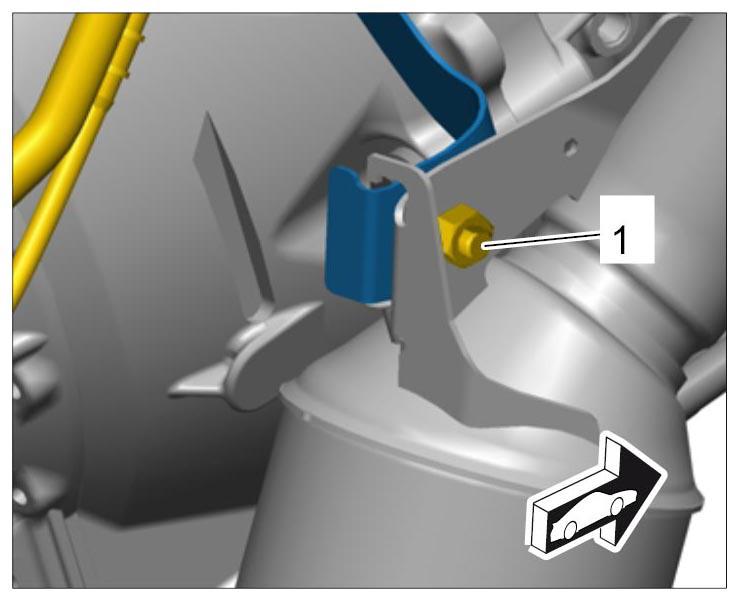

3. Unscrew the fastening screw -1-  on the holder.
   Fig 3: Identifying Right Catalytic Converter Mounting

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Remove catalytic converter from below.
