Preliminary Work

With engine installed =>

  1. Remove cowl panel cover. → REMOVING COWL PANEL COVER

    If cylinder head is replaced =>

  2. Remove stopper.

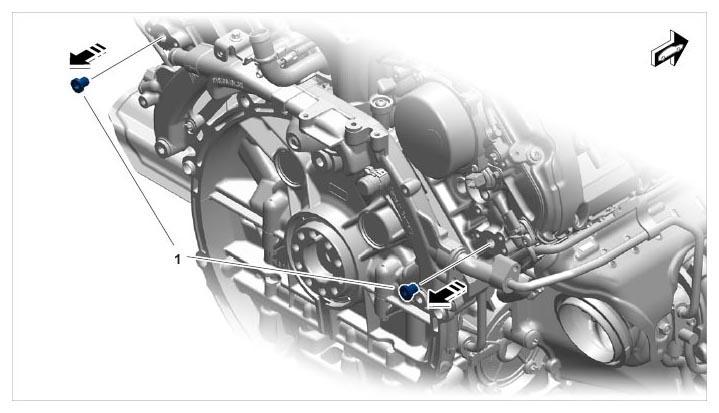

    Fig 1: Removing Stopper On Secondary-Air Duct
    G09806092Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. Stopper on secondary-air duct; during re-installation
  3. Screw secondary air line flange off the cylinder head.
