Secondary-Air Pump

  1. Secondary-air pump
  2. Screw, M6 x 20 → Tightening torque: 8 Nm (6 ftlb.)
  3. Secondary-air pump holder
  4. Screw, M6 x 16

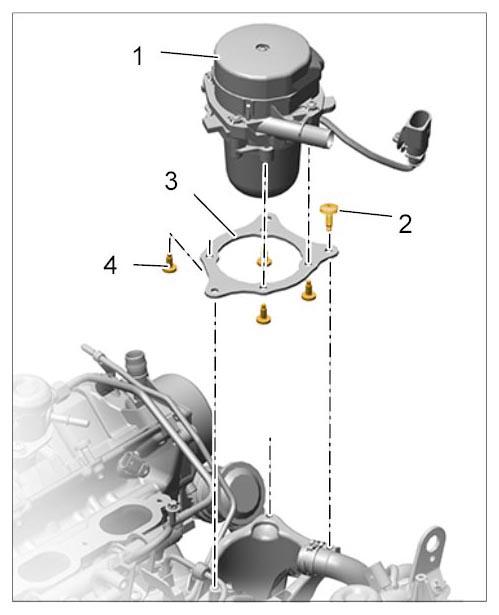

    5. Fig 1: Identifying Secondary-Air Pump Components
    G09806075Courtesy of PORSCHE CARS NORTH AMERICA, INC.
