WM 263519 Removing And Installing Tailpipe Cover (PANAMERA, PANAMERA 4, PANAMERA Turbo, PANAMERA Turbo Executive, PANAMERA Turbo S, PANAMERA Turbo S Executive, PANAMERA GTS, PANAMERA Edition, PANAMERA 4 Edition, PANAMERA Executive Edition & PANAMERA 4 Executive Edition)
>>
Removing And Installing Tailpipe Cover
Removing And Installing Tailpipe Cover
Unscrew screw -1- and pull off tailpipe cover.
Tightening torque 8 Nm (6 ftlb.) +/-1 Nm (+/-0.5 ftlb.)

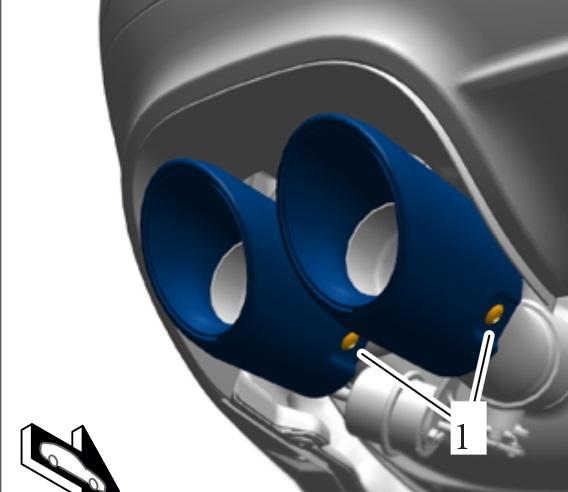

Fig 1: Tailpipe Cover
