Installing Tailpipe

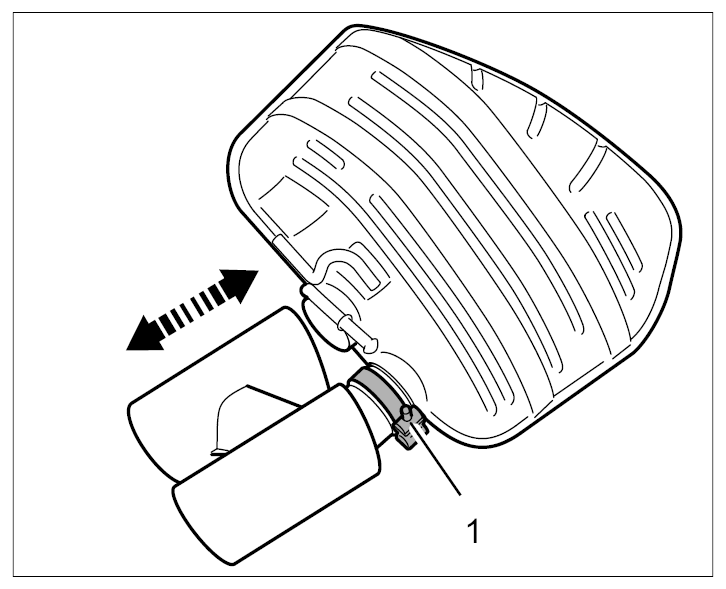

Fig 1: Installing Replacement Tailpipe

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Clamp

1. Left rear silencer
2. Right rear silencer
3. Clamp
4. Right tailpipe cover
5. Left tailpipe cover

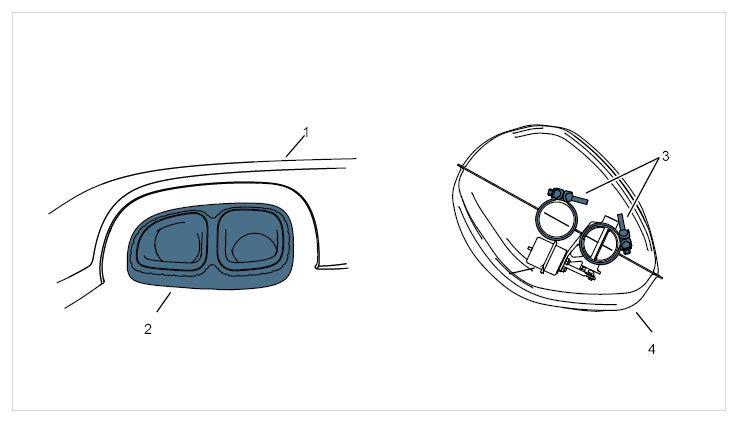

   Fig 2: Identifying Sport Tailpipe Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Left rear silencer
2. Right rear silencer
3. Clamp

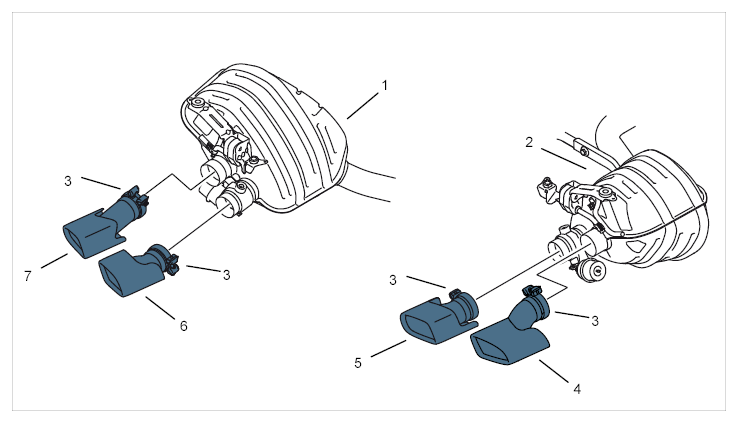

Fig 3: Installation Position Of Turbo Individual Covers
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 4/5  - Right tailpipe covers
2. 6/7  - Left tailpipe covers

1. Left rear silencer
2. Right rear silencer
3. Clamp
4. Right tailpipe cover
5. Left tailpipe cover

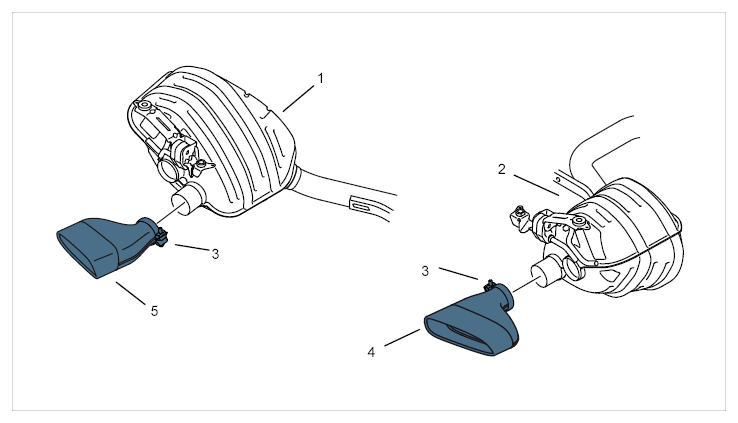

Fig 4: Installation Position Of V6 Tailpipe Covers

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Alignment =>  The tailpipe covers should have the same exhaust spacing on the left and right. If there are differences in the exhaust length relative to the rear apron, the other tailpipe cover must also be replaced. For example -2 and 3-  and -2 and 3-  . The "Standard" illustration -2 and 3-  shows all the ideal spacings.

1. Rear apron
2. Left tailpipe cover
3. Right tailpipe cover
4. Clamp; the correct insertion depth of the exhaust pipe can be seen in the slot of the tailpipe cover! (applies to all variants)
Fig 5: Identifying Standard Adjustment Dimensions
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

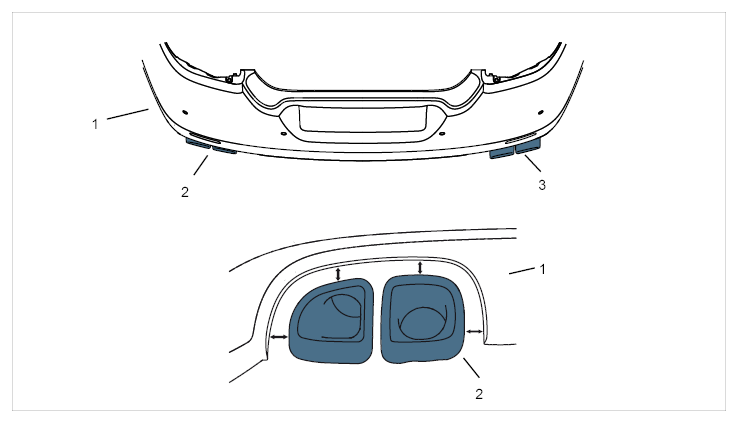

1. Rear apron
2. Left tailpipe cover
3. Right tailpipe cover
Fig 6: Identifying Turbo Adjustment Dimensions
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

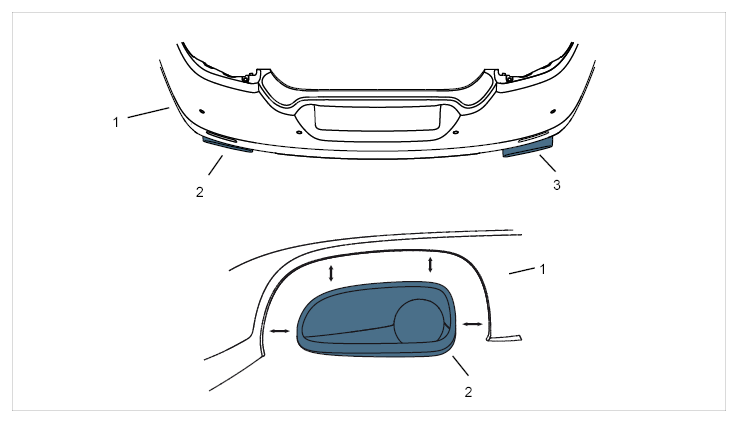

1. Rear apron
2. Left tailpipe cover
3. Right tailpipe cover
Fig 7: Identifying V6 Adjustment Dimensions
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

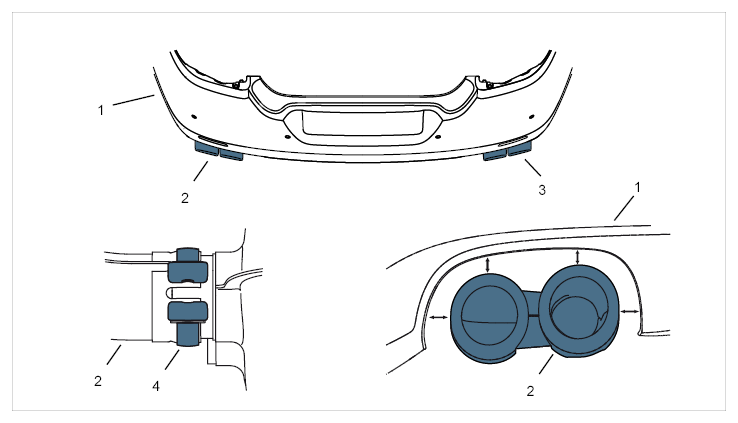

1. Rear apron
2. Left tailpipe cover
3. Alignment of the Sport ball clamps
4. Rear silencer
Fig 8: Identifying Sport Adjustment Dimensions
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
