Removing Plug Socket In Glove Box

  1. Release connector -3-  (-a-  ) and pull it off.
  2. Open the cover -2-  of the plug socket and press out the plug socket -1-  using a screwdriver.

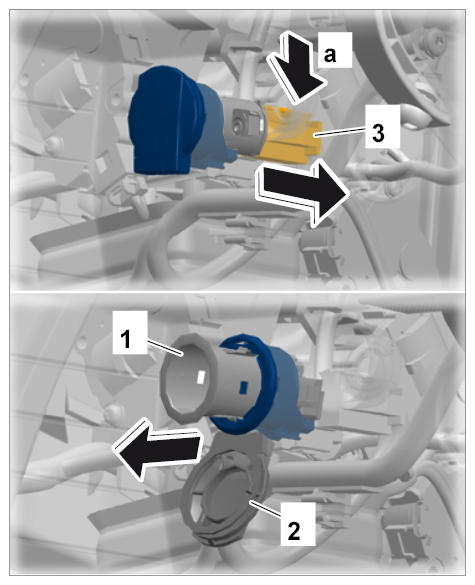

    3. Fig 1: Removing Plug Socket In Glove Compartment
    G09813703Courtesy of PORSCHE CARS NORTH AMERICA, INC.
