Removing Gateway Control Unit

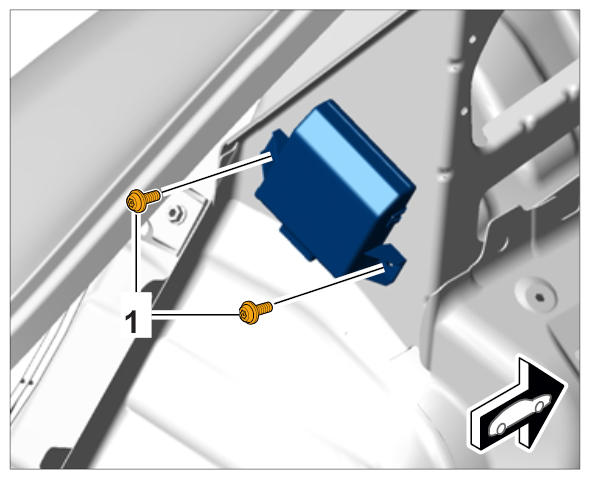

- Loosen the two fastening nuts -1-
on the gateway control unit and remove the control unit.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

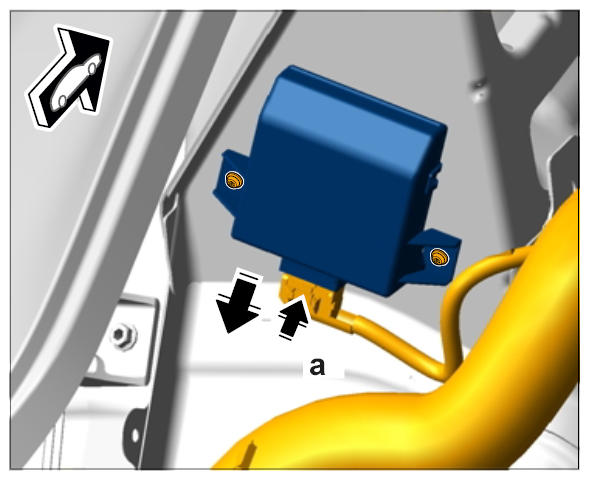

- Release electric plug connection -a-
and pull it off the control unit.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Loosen the two fastening nuts -1-
on the gateway control unit and remove the control unit.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Release electric plug connection -a-
and pull it off the control unit.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
