Removing Stopwatch

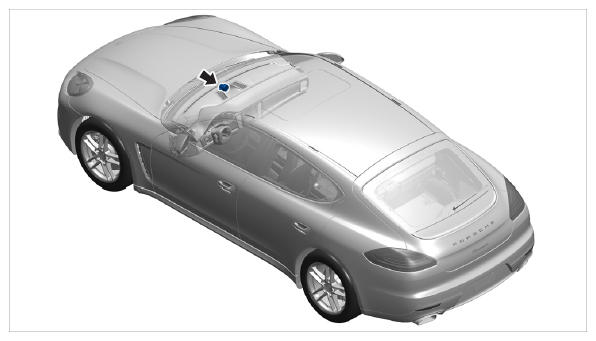

Fig 1: Identifying Stopwatch Removal Position
G09813676Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Turn the cover over and unscrew the fastening screws -1-  for the stopwatch.

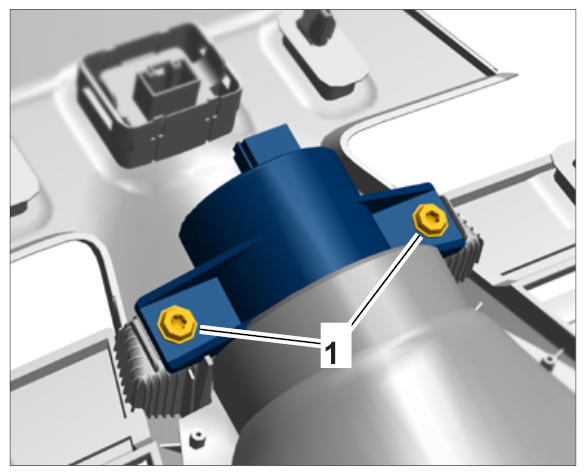

    Fig 2: Identifying Stopwatch Fastening Screws
    G09813677Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Take the stopwatch out of the holder -arrow-  .

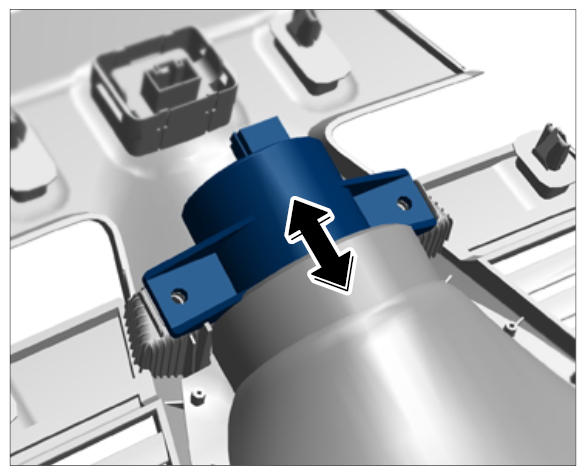

    Fig 3: Removing Stopwatch
    G09813678Courtesy of PORSCHE CARS NORTH AMERICA, INC.
