Installing Dashboard Insert At The Top

  1. Position the dashboard inserts at the top left -1-  and top right -2-  .

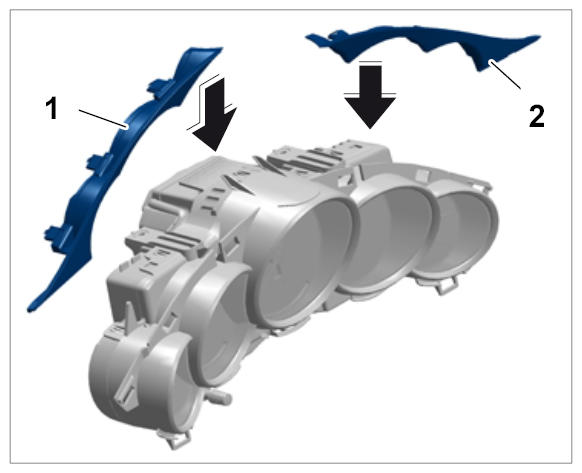

    Fig 1: Positioning Dashboard Insert (Top)
    G09813672Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Clip in the dashboard insert at the top right -2-  using the clips -5-  and clip in the dashboard insert at the top left -1-  using the clips -4-  .

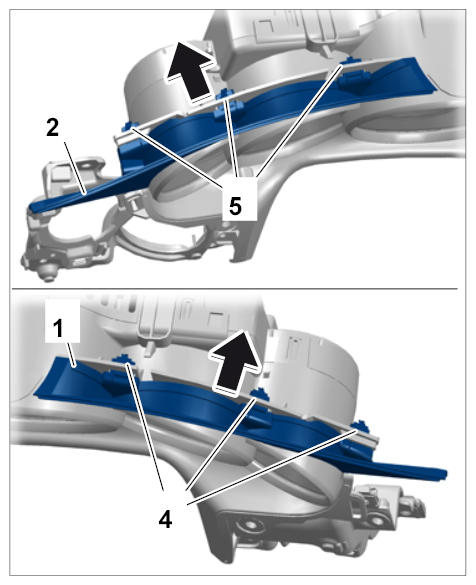

    Fig 2: Installing Dashboard Insert Clip (Top)
    G09813673Courtesy of PORSCHE CARS NORTH AMERICA, INC.
