Installing Dashboard Insert At The Bottom

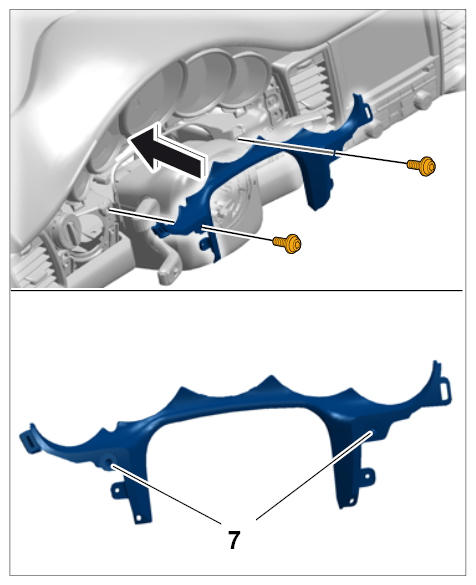

  1. Clip the dashboard insert at the bottom into the instrument cluster using the clips -7-  .
    Fig 1: Positioning Dashboard Insert (Bottom)
    G09813674Courtesy of PORSCHE CARS NORTH AMERICA, INC.

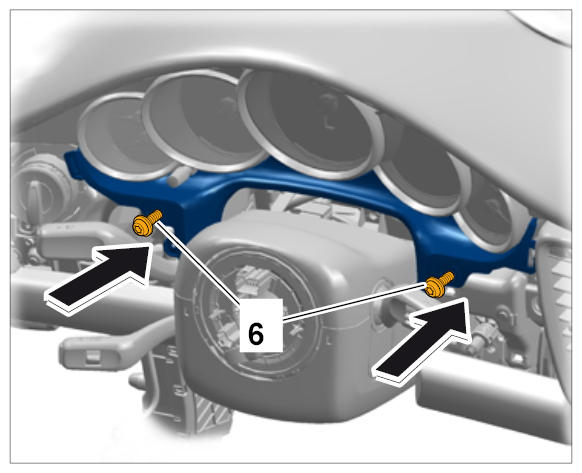

  2. Screw in and tighten fastening screws -6-  .
    Fig 2: Tightening Dashboard Insert Fastening Screws
    G09813675Courtesy of PORSCHE CARS NORTH AMERICA, INC.
