Removing Speed Sensor

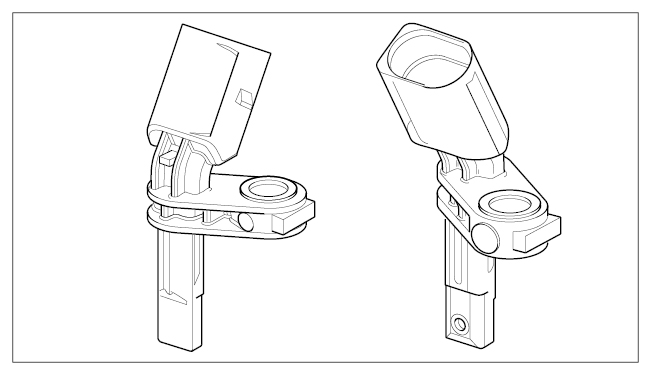

Fig 1: Identifying Speed Sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

The wheel does not need to be removed.
Pull the connector off the speed sensor -arrow- .

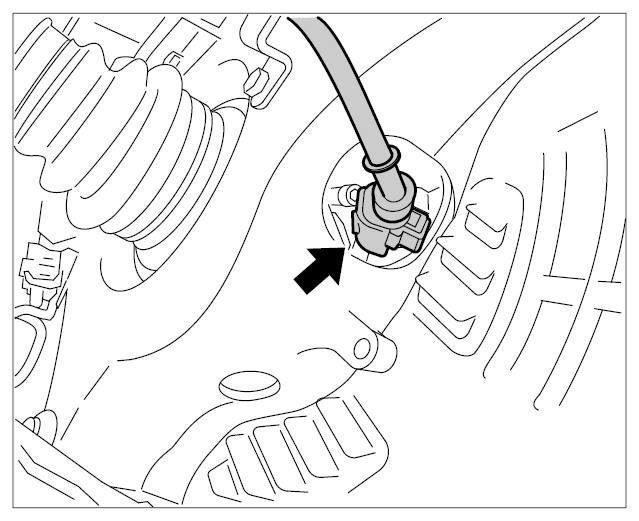

Fig 2: Locating Rear-Axle Speed Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

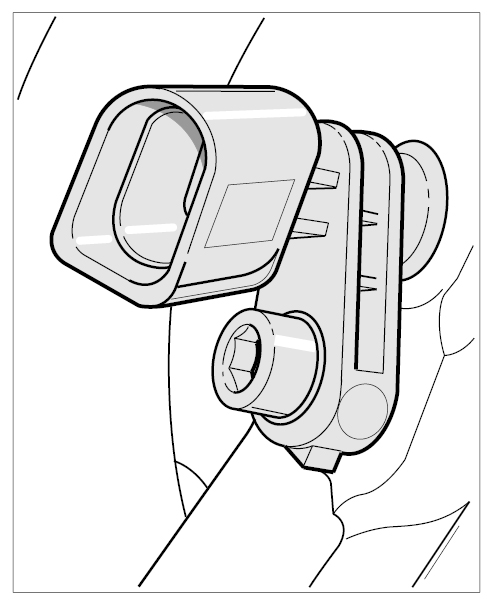

Fig 3: Identifying Speed Sensor Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screw and remove speed sensor.

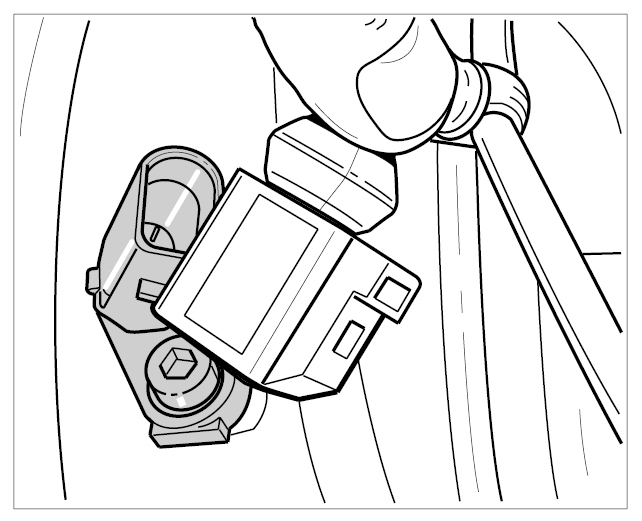

Fig 4: Identifying Speed Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
