Gap Dimensions Of Rear Window

→ Gap dimension: 3 mm+0.5 mm-0.5 mm

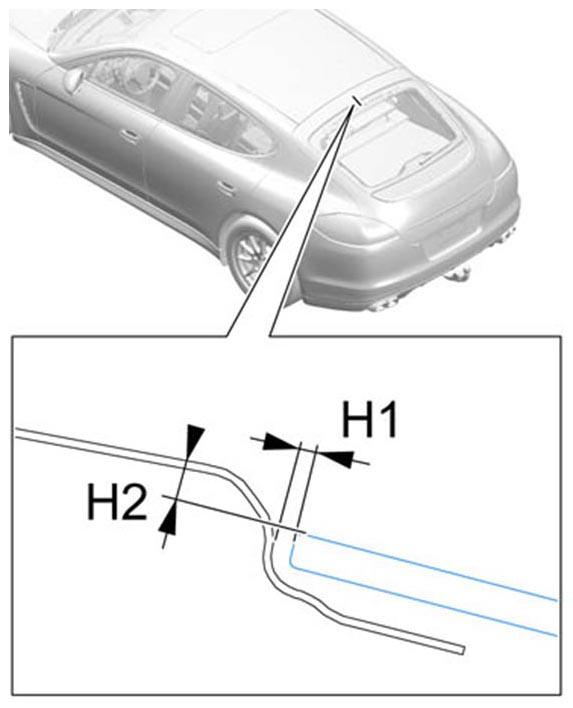

Fig 1: Identifying Rear Window Gap Dimension

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 6 mm

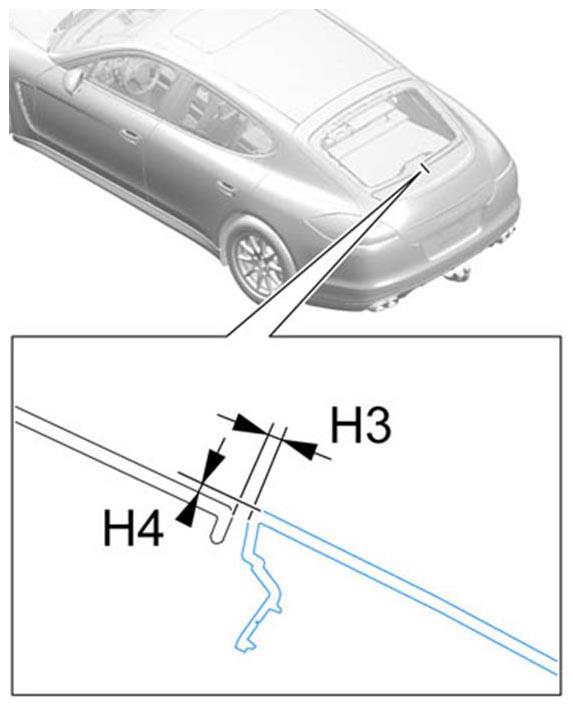

Fig 2: Identifying Rear Window Gap Dimension

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 4 mm+1 mm-0.5 mm

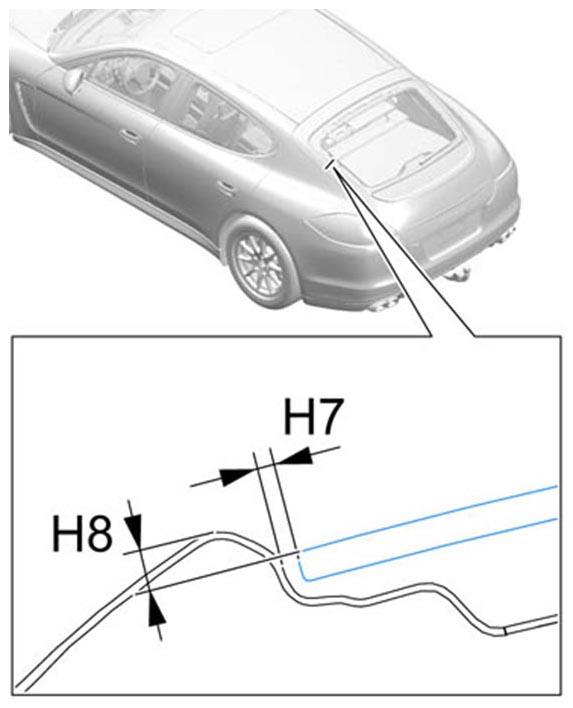

Fig 3: Identifying Rear Window Gap Dimension

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 3 mm+1 mm-1 mm

Fig 4: Identifying Rear Window Gap Dimension

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 3 mm+0.5 mm-0.5 mm

Fig 5: Identifying Rear Window Gap Dimension

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 9 mm+0.5 mm-1.5 mm

Fig 6: Identifying Rear Window Gap Dimension

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
