Removing Rear Window

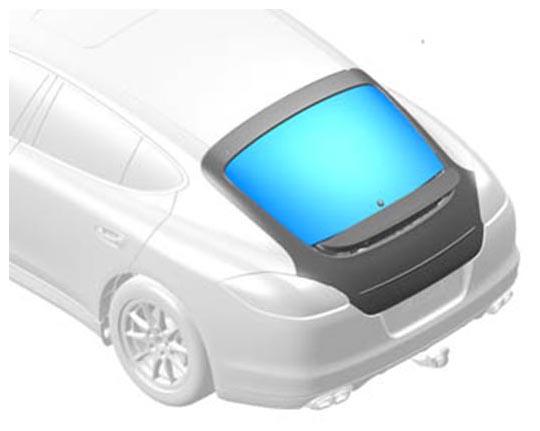

Fig 1: Identifying Rear Window Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• The procedure for removing car windows is described in →  6X00IN GENERAL INFORMATION ON REMOVING CAR WINDOWS  .

1. Extend the spoiler.
2. Switch off ignition and remove remote control (hand-held transmitter).
3. Affix adhesive tape -1-  at the lower left corner of the rear window on the rear lid.

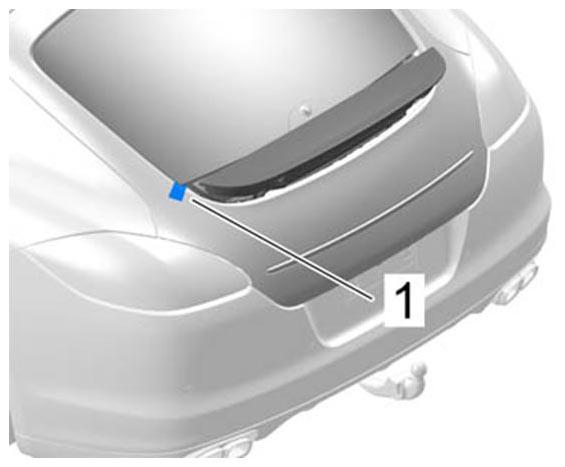

   Fig 2: Identifying Rear Window And Adhesive Tape

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Secure electric connectors (from rear window to rear lid).
   1. 4.1. Disconnect electric connectors -2-  .

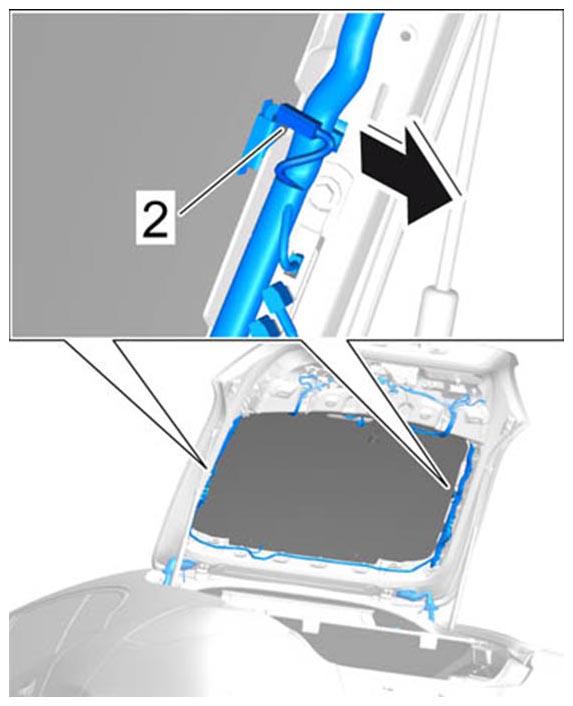

      Fig 3: Disconnecting Plug Connections

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 4.2. Affix electric connectors securely to the rear window using adhesive tape -1-  .

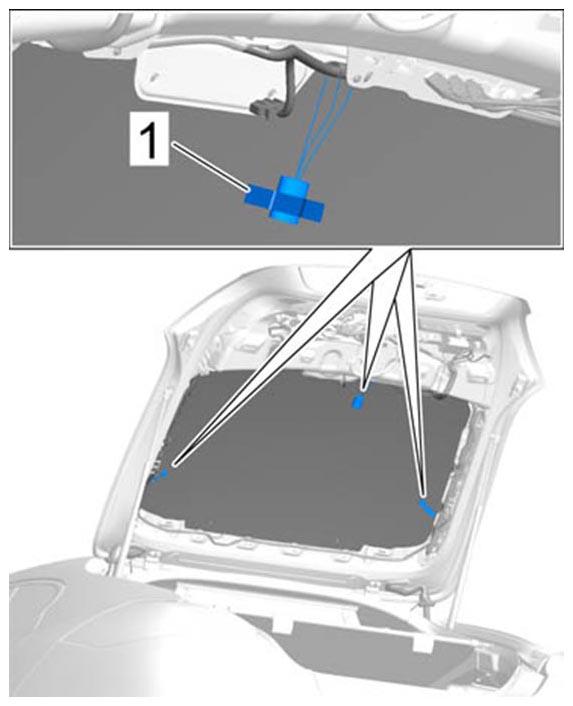

      Fig 4: Affixing Plug Connections Securely

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Secure electric connectors (from rear lid to rear window).
   1. 5.1. Disconnect electric connectors.
   2. 5.2. Affix electric connectors securely to the rear lid using adhesive tape -1-  .

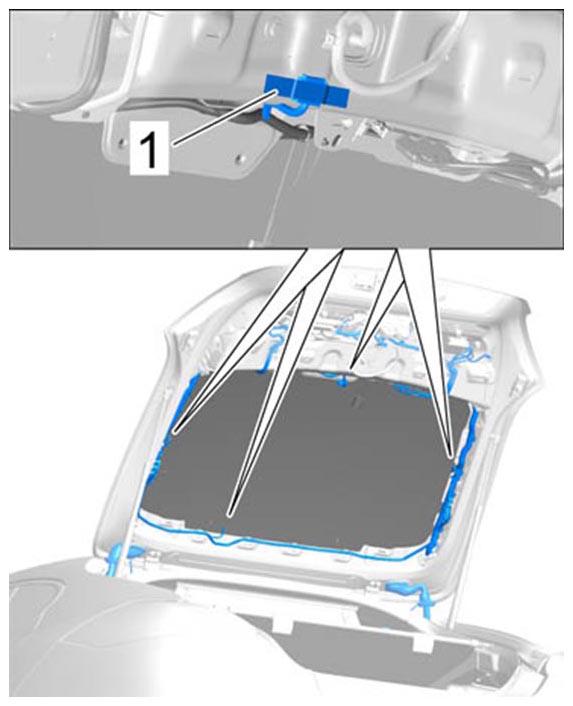

      Fig 5: Affixing Plug Connections Securely

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Remove grommet for wiper motor for rear window washer.
   WARNING: Vehicle windows removed and installed incorrectly

   • Danger of cuts
   • Risk of eye injuries

   → Wear personal protective gear.

   → Always shut off power supply when replacing cutting knife.

7. Apply a bead of adhesive from inside out in the area protected by the adhesive tape using the scratch awl.
   Fig 6: Identifying Rear Window Adhesive Tape

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • Make sure not to damage the heated rear window connections when removing the glass with the cutting wire.
   • Cut up to just before the connection.
   • Slacken the cutting wire.
   • Guide the cutting wire past the connection on the inside.

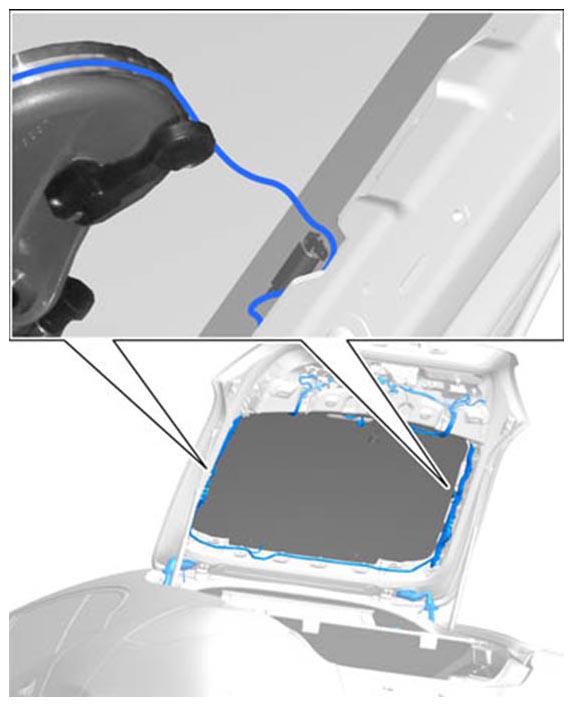

   Fig 7: Guiding Cutting Wire Past Electric Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   • Counter with an awl.

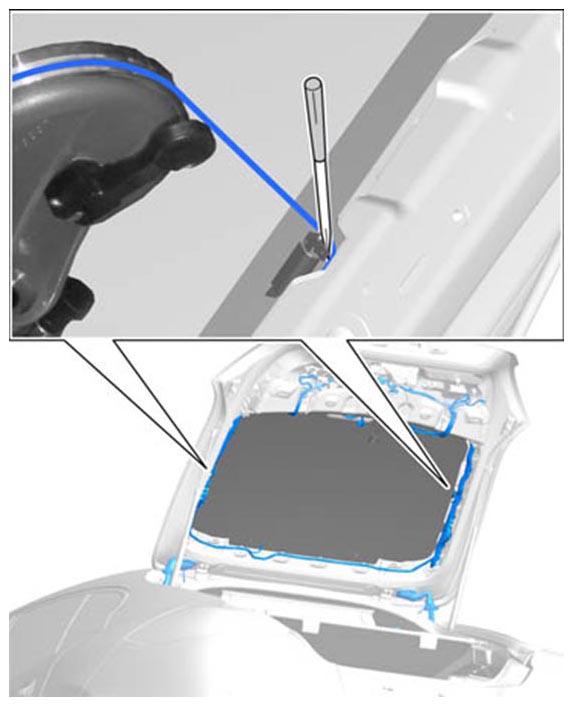

     Fig 8: Countering Window Glass With AWL

     Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   • Make sure that the cutting wire does not press against the electric connection when separating the glass.
   • Continue separating the window glass.
8. Remove rear window using the cutting-wire separating device.
   Fig 9: Identifying Rear Window Wire Cutting Position

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
