Installing Rear Door Window

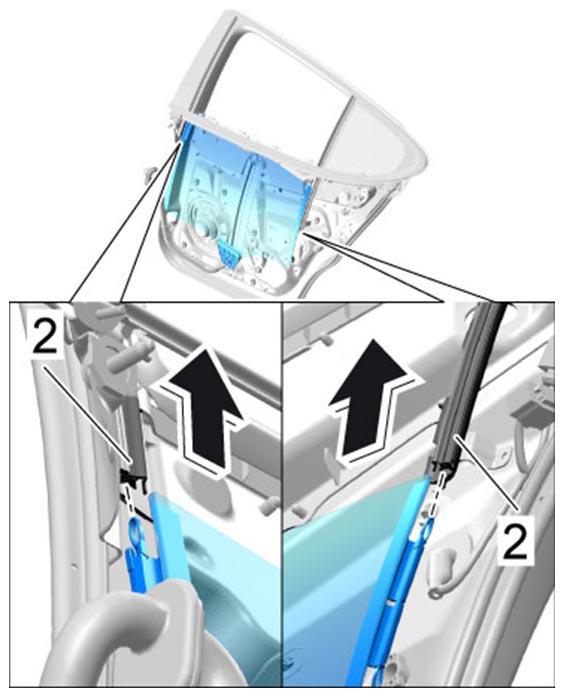

- Insert the door window glass into the guide -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Insert the door window glass into the power windows mounting.
- Align the catches for the door window mounting.
- 3.1. Roll the door window up fully.

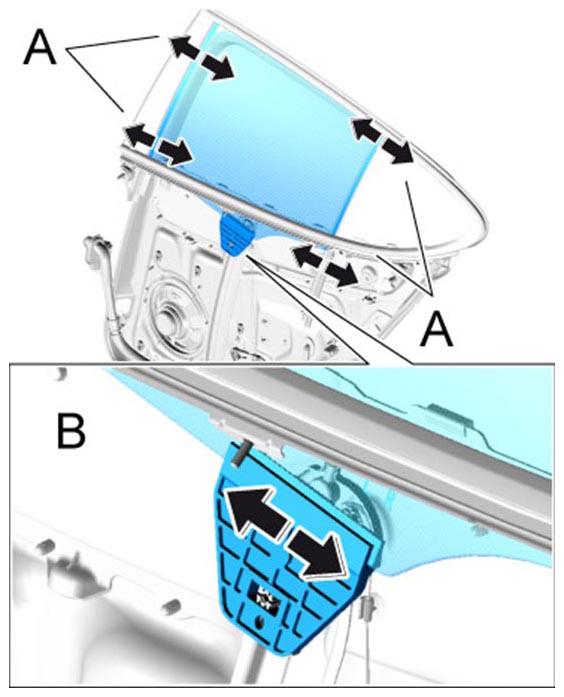

- 3.2. Align the door window until it is parallel with the B-pillar trim and rear side window -A-
.
- 3.3. Check that the catches are adjusted without tension and re-adjust them if necessary -B-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

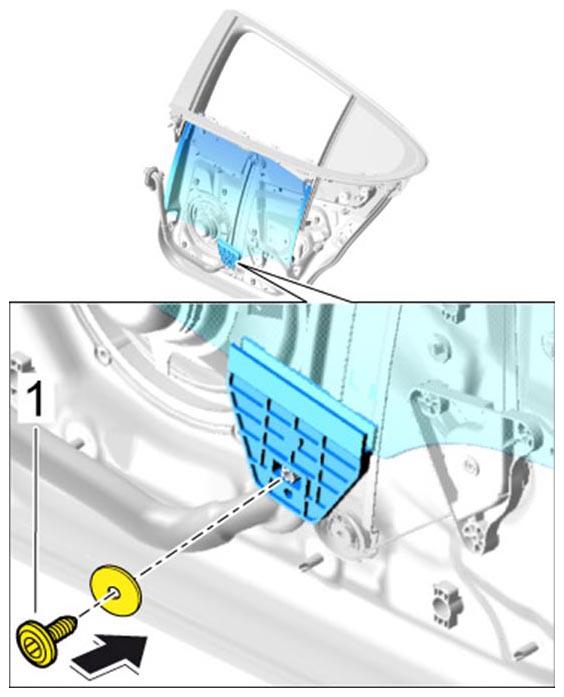

- Screw in fastening screw -1- → Tightening torque: 3.5 Nm (2.5 ftlb.)
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
