Removing Front Window Lifter (Guide Rail)

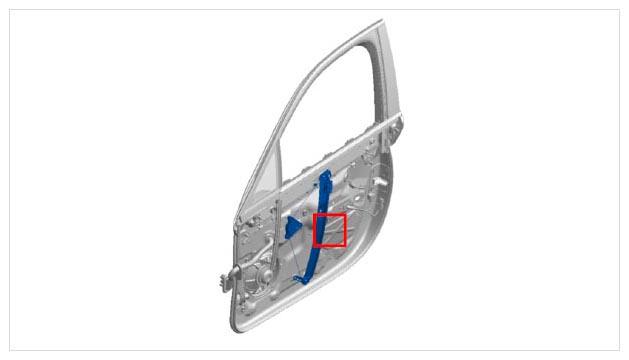

Fig 1: Identifying Front Window Lifter Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Drill out rivets -2-  at the bottom and center fastening points on the guide rail -1-  using a 4-mm drill bit.

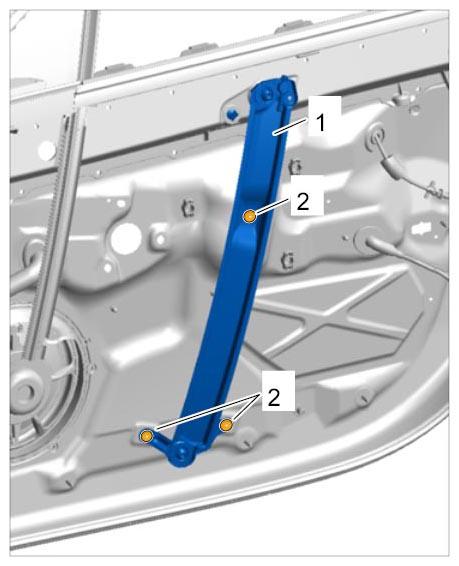

   Fig 2: Drilling Rivet At Bottom Fastening Point On Guide Rail

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Drill out rivets -2 and 3-  at the top fastening point on the guide rail -1-  using a 4-mm drill bit.
   Fig 3: Drilling Rivets At Top Fastening Point On Guide Rail

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Remove guide rail -1-  from the door sub-frame -arrow-  .
