Technical Values: Overview
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

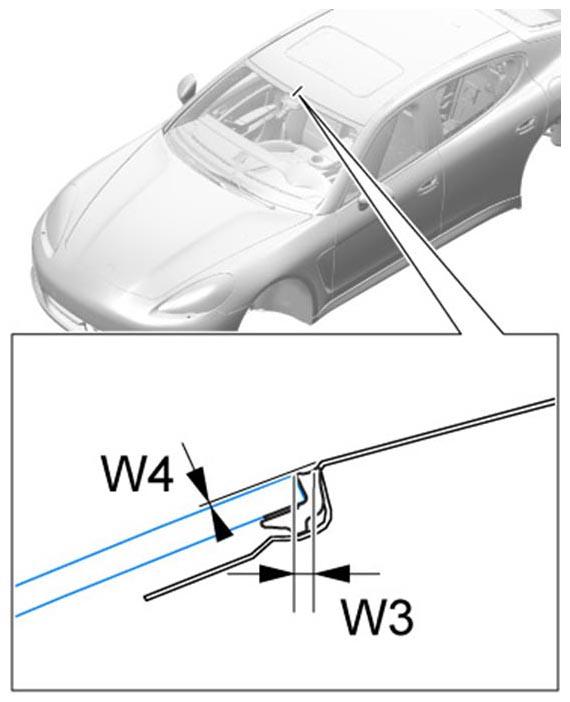

| Windscreen to roof (W4) | Gap dimension | 1 mm | +/-1 mm | ||
|
Gap dimension |
|||||
| Windscreen to roof (W3) | Gap dimension | 3 mm | +1 mm | ||
|
Gap dimension |
|||||
| Fastening screws for roof trim panel | Item 1 | Tightening torque | 5.5 Nm (4 ftlb.) | ||
| Fastening screw for sun visor | Item 1 | Tightening torque | 5.5 Nm (4 ftlb.) | ||
| Fastening screw for sun visor | Item 1 | Tightening torque | 5.5 Nm (4 ftlb.) | ||
