Gap Dimensions Of Windscreen

→ Gap dimension: 1 mm+/-1 mm

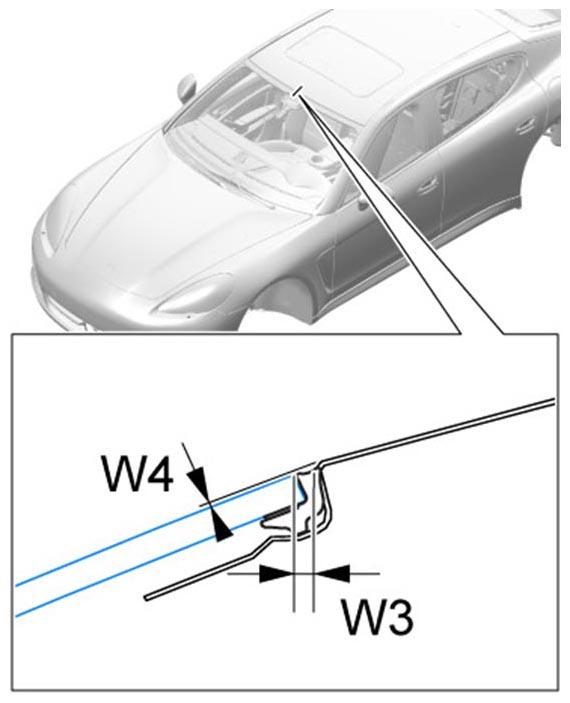

Fig 1: Identifying Windscreen Gap Dimension

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 3 mm+1 mm

Fig 2: Identifying Windscreen Gap Dimension

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
