Installing Cover For Rear Backrest: Notes

Information

• Always replace metal cushion clips.
• Reuse plastic cushion clips. Replace defective cushion clips.

1. Guide the cover over the bearing pins and align it on the cushion.
2. Plug in electric lines and guide the line through the cover -arrow E-  .

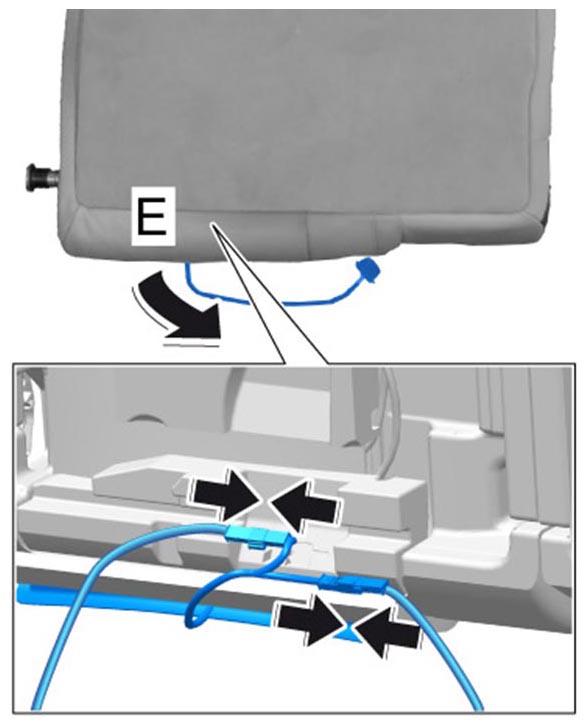

   Fig 1: Plugging In Electric Lines

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Fasten cushion clips.
   1. 3.1. For seats without air conditioning:
      1. 3.1.1. Secure the cover -1-  using cushion clip pliers Nr.130  and fasten new metal cushion clips in the sequence shown -a to e-  .

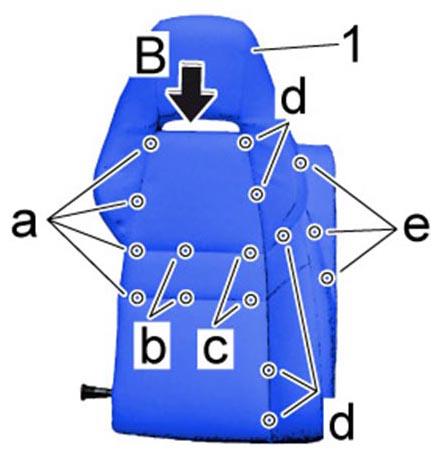

         Fig 2: Fastening Cushion Clips

         Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 3.2. For seats with air conditioning:
      1. 3.2.1. Secure the cover -1-  using cushion clip pliers Nr.130  and fasten new metal cushion clips in the sequence shown -a to e-  .

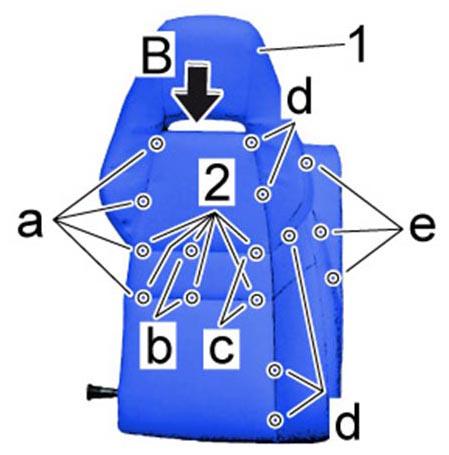

         Fig 3: Fastening Cushion Clips (Air Conditioning)

         Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      2. 3.2.2. Engage plastic cushion clips -2-  .
4. Guide the cover through the headrest towards the rear.

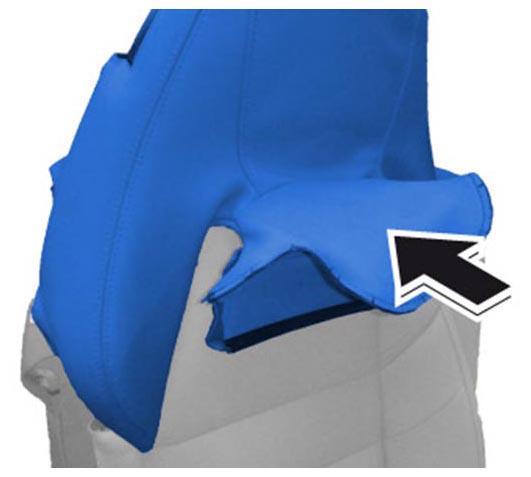

   Fig 4: Pushing Headrest Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Pull the cover over the headrest towards the rear.

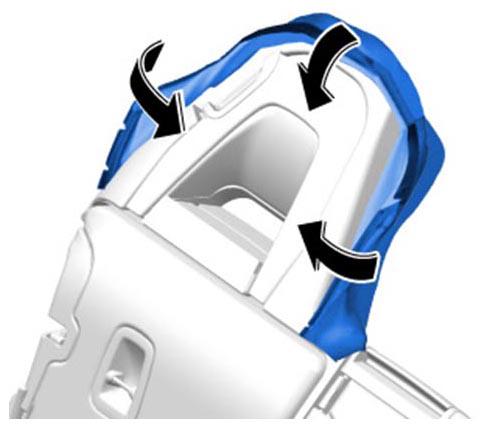

   Fig 5: Pulling Headrest Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Attach the cover around the lock.

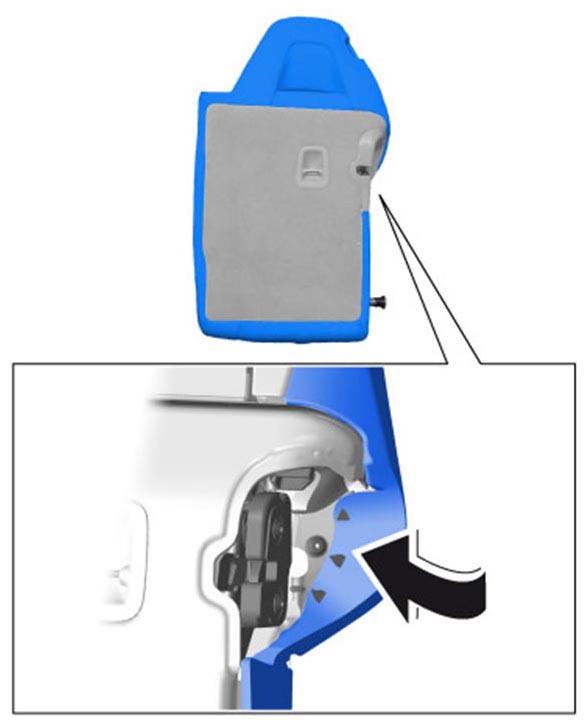

   Fig 6: Attaching Headrest Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Attach the cover completely at the rear seat.

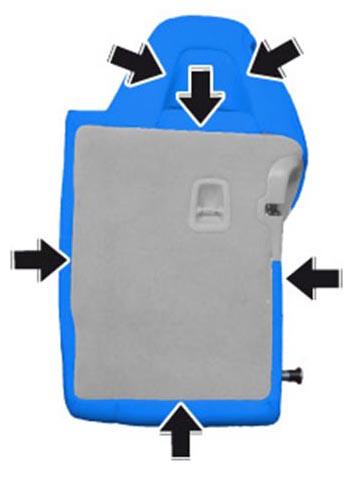

   Fig 7: Attaching Rear Seat Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
