Installing Switch For Memory Seat Adjustment

  1. Place switch -1-  in installation position.
  2. Secure the switch with fastening screws -2-  .

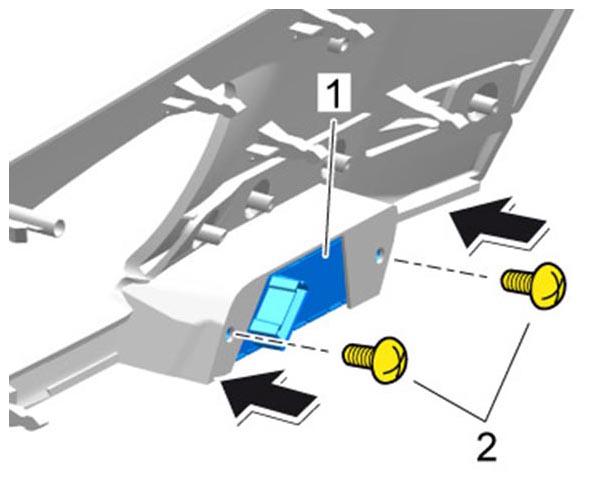

    3. Fig 1: Installing Switch
    G09812763Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Connect plug connection until it engages securely.

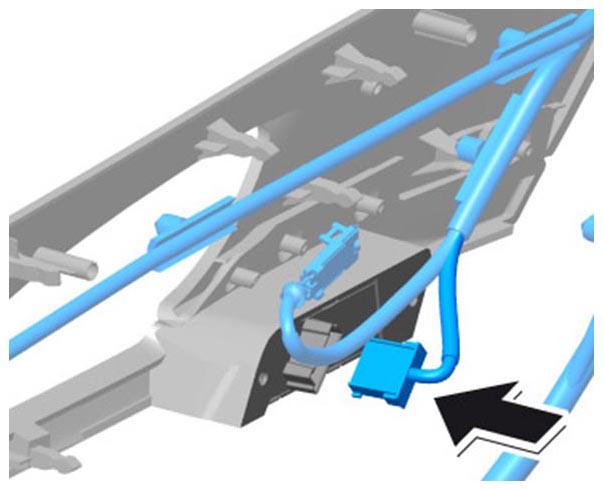

    Fig 2: Connecting Plug Connection
    G09812764Courtesy of PORSCHE CARS NORTH AMERICA, INC.
