Removing Motor For Front Vertical Adjustment

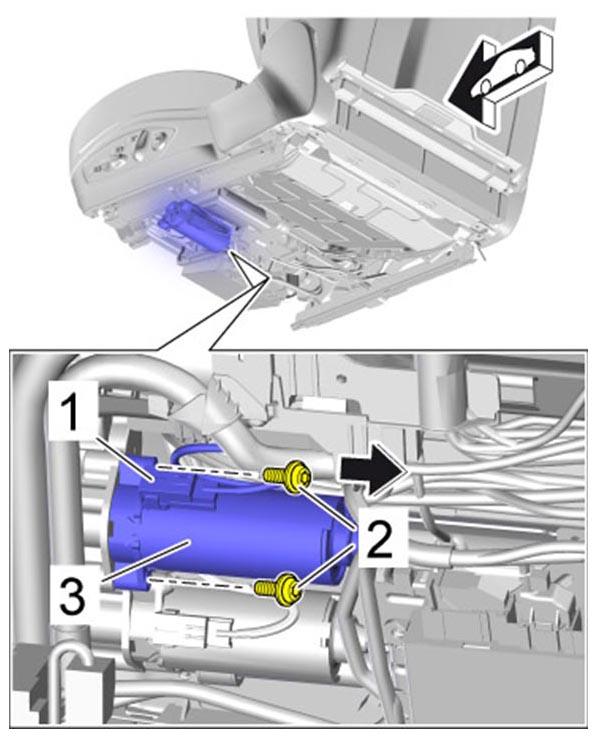

  1. Pull off connector -1-  on motor for front vertical adjustment -3-  .
  2. Unscrew the two fastening screws -2-  and remove motor for front vertical adjustment -3-  .
    3. Fig 1: Removing Motor For Front Vertical Adjustment
    G09812731Courtesy of PORSCHE CARS NORTH AMERICA, INC.

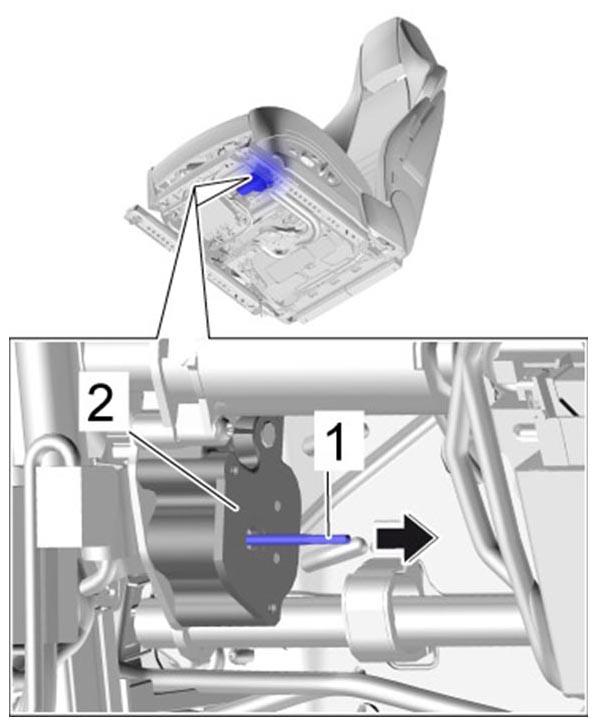

  3. Pull the drive shaft -1-  out of the transmission mount -2-  and check it for damage.
    Fig 2: Removing Drive Shaft
    G09812732Courtesy of PORSCHE CARS NORTH AMERICA, INC.
