Removing Control Valve For Air Cushion For Seat Surface
- Disconnect pressure line for air cushion for seat.
- 1.1. Place seat on its side.

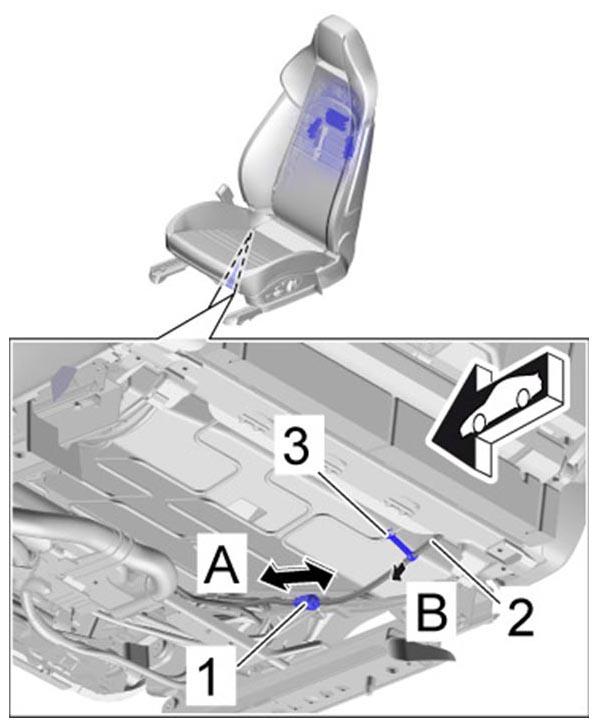

- 1.2. Disconnect pneumatic plug connection -1-
on the underside of the seat -arrow A-
.
- 1.3. Remove pressure line -2-
from the holder -3-
(-arrow B-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Pull pressure line for air cushion for seat out of the backrest area.

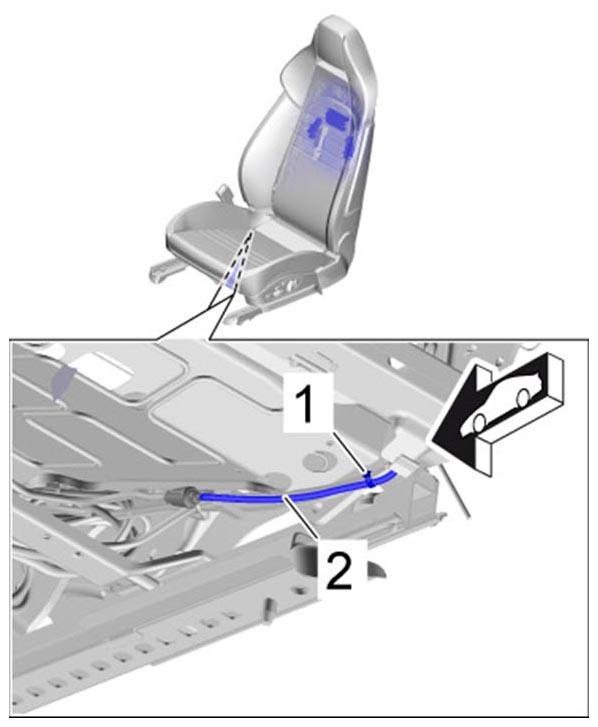

- 2.1. Cut tie-wrap -1-
.
- 2.2. Pull pressure line for air cushion for seat -2-
in the backrest area up towards the control valve.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Disconnect pressure line for air cushion for backrest.

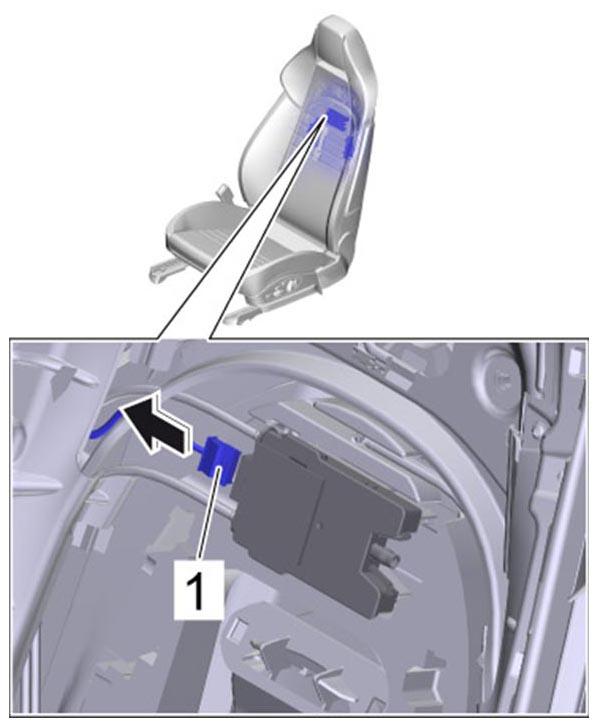

- 3.1. Disconnect pneumatic plug connection -1-
(-arrow-
).
- 3.2. Pull pressure line -2-
in the backrest area up towards the control valve.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

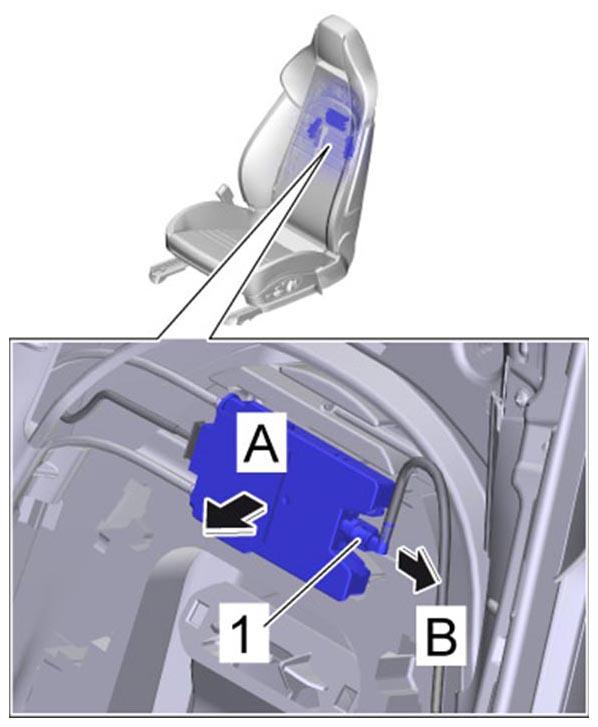

- Remove control valve for air cushions for seat and backrest from the guide -arrow A-
.
- Pull pressure line -1-
off the control valve -arrow B-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

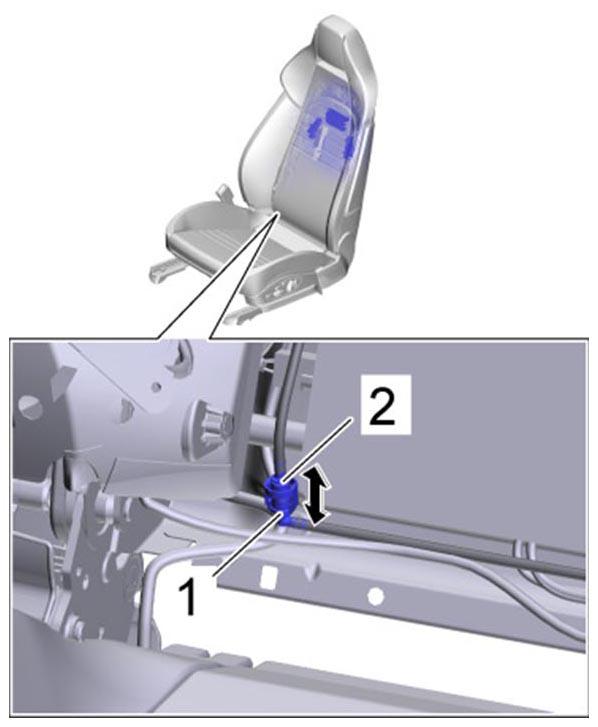

- Release electric plug connection -1-
and disconnect it -arrow-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Remove control valve for air cushions for seat and backrest
