Installing Trim Panel For Control Panel

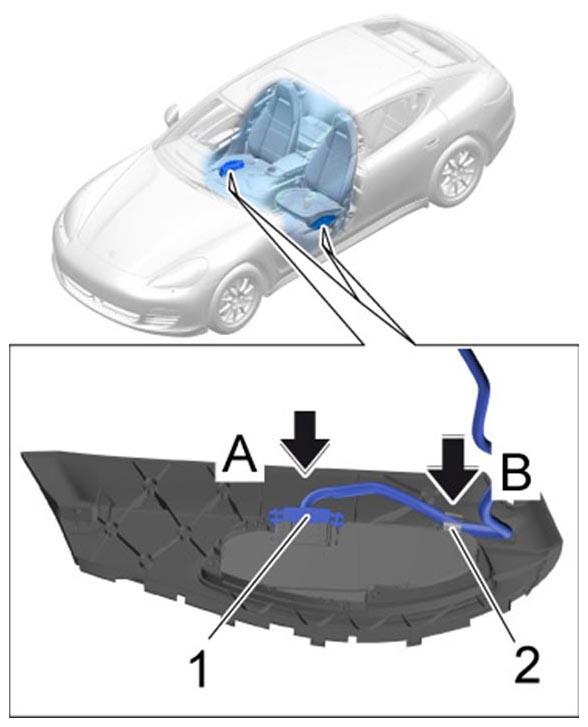

  1. Plug in connector -1-  on the control panel.
  2. Fit retaining clip -2-  with wiring harness -B-  .
    Fig 1: Fitting Connector
    G09812529Courtesy of PORSCHE CARS NORTH AMERICA, INC.

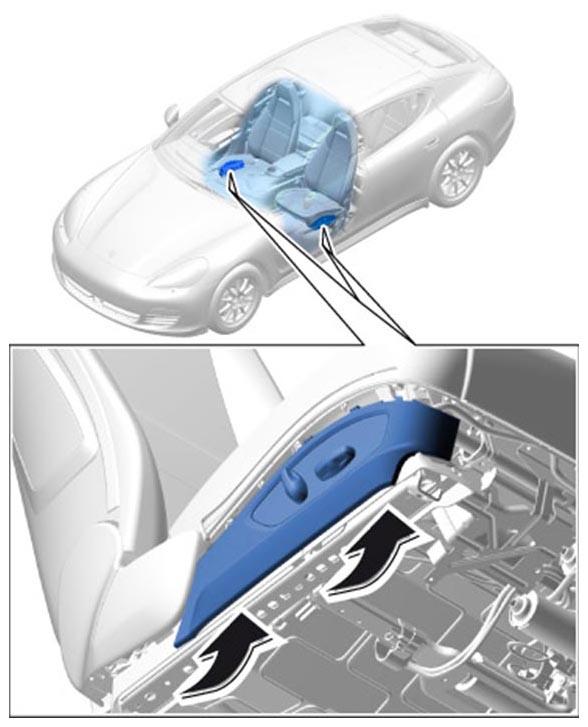

  3. Fit trim panel and clip it in -arrows-  .
    Fig 2: Fitting Trim Panel
    G09812530Courtesy of PORSCHE CARS NORTH AMERICA, INC.

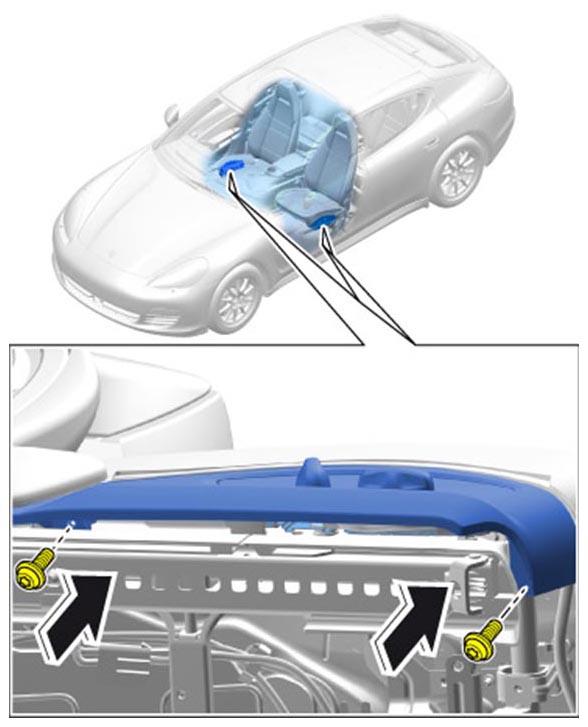

  4. Screw in fastening screws -arrows-  .
    Fig 3: Fitting Fastening Screws
    G09812531Courtesy of PORSCHE CARS NORTH AMERICA, INC.
