General Information And Repair Areas

Information

This repair method is a cost-effective repair that may have quality implications. To achieve the best repair result, always use the tool recommended by Porsche and attend the special training courses run by the tool/system suppliers.

Paint repairs (also known as spot coating) can be used for small areas of paint damage. In this case, the damage is repaired over a small area by touching up the base and clear lacquer. The transition point from the old to the new clear lacquer is polished to achieve a match.

Please note:  When polishing there is a danger of creating trailing edges at the transition point.

Areas of application:

• Paint repairs are possible on plastic and sheet metal.
• Single-layer, double-layer and metallic paint finishes can be painted in this way.
• This painting method can be used to its full extent in areas with low light reflection (e.g. bumpers, door sills, edges of parts). -green area-
• Paint repairs to components with larger surfaces are only possible to some extent -yellow area-  . In these areas, only small areas of damage with a diameter of up to 35 mm or a length of up to 100 mm should be repaired.
• Damage to large surface areas cannot be rectified using paint repair methods. -red area-

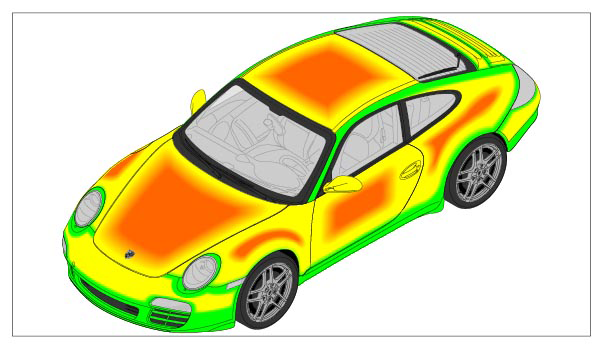

  Fig 1: Identifying Areas Of Application For Paint Repairs

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

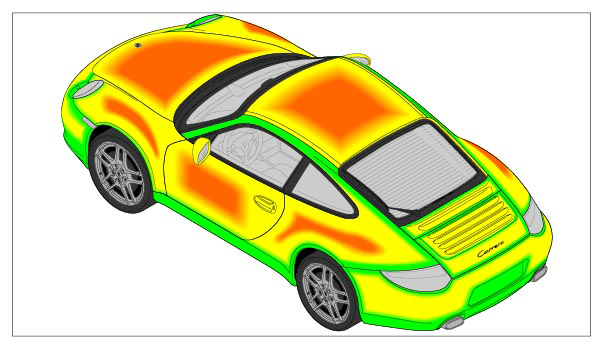

Fig 2: Identifying Areas Of Application For Paint Repairs

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Success factors

• Extent of damage
• Nature of damage
• Location of damage
• Workmanship skills and experience
• Tools
• Color

Always follow the manufacturer's instructions.
